Code: 586093

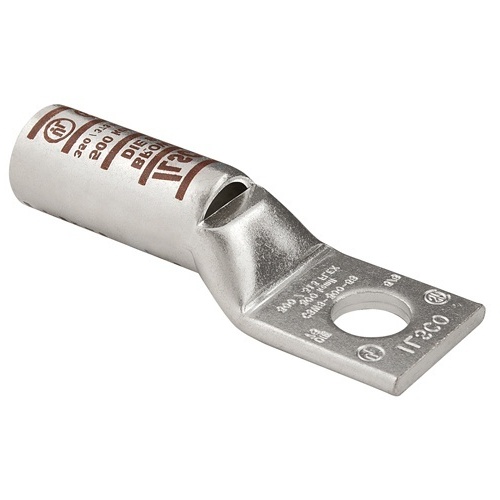

Ilsco CLWS-6-516 Compression Lug - Copper, 6 AWG, Stranded, 35 kV, 5/16", Silver
Normally In Stock
Ilsco CLWS-6-516 - Surecrimp Copper Compression Lug, Conductor Size 6, 1 Hole, 5/16in Bolt Size, Long Barrel, Sight Window, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$7.67
Sale Price
$5.90
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Ilsco CLWS-6-516 - Surecrimp Copper Compression Lug for 6 AWG conductors, 5/16in bolt, long barrel with sight window. Tin plated copper, UL, CSA, NEMA Code S-588-3, Silver color. Rated for 35kV, temperature 90°C. Direct burial approved, 1 mounting hole, 180° connecting angle. Suitable for stranded copper conductors.UL 486A/B Listed.
Specifications
Bolt Size
5/16"
Component
Compression Lug
Manufacturer
Ilsco
Material
Copper
Wire Gauge
6 AWG
Features
Manufactured from high strength seamless copper tubing
Electro-Tin plated
Chamfered entry
Color coded
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
UL Listed and CSA Certified with ILSCO and major competitor’s compression tools
UL467 Listed 500 kcmil - 10 AWG , #10 - #2 SOL
For direct bury 500 kcmil - 10 grounding and bonding
Rated to 90˚ C
