Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

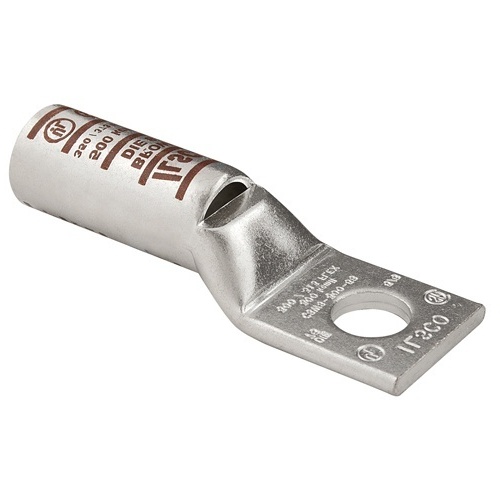

Ilsco CLWS-1000-58 Compression Lug - Copper, 1000 MCM, Flex, 35 kV, 5/8", Silver
Normally In Stock
Code: 585926
Ilsco CLWS-1000-58 - Surecrimp Copper Compression Lug, Conductor Size 1000, 1 Hole, 5/8in Bolt Size, Long Barrel, Sight Window, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$170.59
Sale Price
$131.22
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Ilsco CLWS-1000-58 - Surecrimp Copper Compression Lug for 1000 kcmil conductors, 1-hole design with 5/8" bolt size and long barrel. Tin plated, UL and CSA listed for 35 kV applications. Features sight window for easy inspection. Suitable for flex conductors, with 180° connecting angle. Barrel length of 3", tang dimensions of 1.437" x 2.169".
Specifications
Component
Compression Lug
Manufacturer
Ilsco
Material
Copper
Connector Finish
Tin
Number of Mounting Holes
2
Conductor Type
Flex
Bolt Size
5/8"
Wire Gauge
1000 MCM
Features
Manufactured from high strength seamless copper tubing
Electro-Tin plated
Chamfered entry
Color coded
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
UL Listed and CSA Certified with ILSCO and major competitor’s compression tools
UL467 Listed 500 kcmil - 10 AWG , #10 - #2 SOL
For direct bury 500 kcmil - 10 grounding and bonding
Rated to 90˚ C
Code: 585926
Ilsco CLWS-1000-58 Compression Lug - Copper, 1000 MCM, Flex, 35 kV, 5/8", Silver
$170.59
Sale Price
$131.22
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
