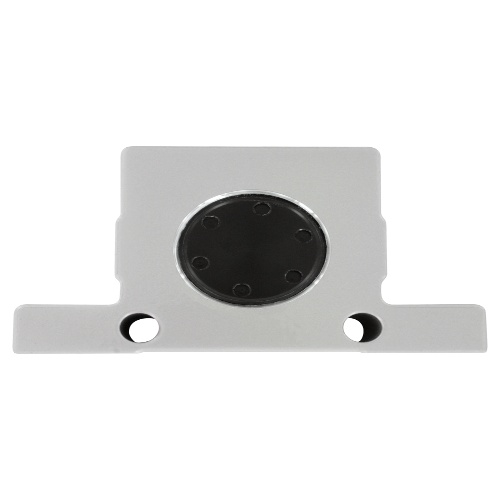

Dwyer PTV-5 Pneumatic Turbine Vibrator
Normally In Stock
Code: 575234
Dwyer PTV-5 - Pneumatic turbine vibrator.
Condition: New
Usually ships Same Day or Next Day$1779.41
Sale Price
$1482.84
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer PTV-5 is a pneumatic turbine vibrator made of aluminum. It has a temperature resistance of 212ºF (100ºC) and comes with different connection options - 1/8" BSPT female with 1/4" OD push to connect adapter on PTV-1, 1/4" BSPT female with 1/4" OD push to connect adapter on PTV-2 to PTV-5, and 3/8" BSPT female with 3/8" OD push to connect adapter on PTV-6. It operates at a supply pressure of 29 to 87 psi (2 to 6 bar) and has a noise level range of 60-75 dBA. A muffler for the exhaust port is also included.
Specifications
(Instrument-Sensor) Temperature Range
212°F/100°C
Component
Pneumatic Turbine Vibrator
Manufacturer
Dwyer Instruments
Features
Series PTV Pneumatic Turbine Vibrators are the best choice of high vibration frequency types for a low noise environment
It is usually installed on a vibrating separator, conveyor, automatic arrangement machine, packing machine, or filling machine
The vibration is produced by centrifugal force which arises from the imbalance of movement when compressed air impacts the tangent of the turbine to make it move
The operation noise is low because of ball bearing supports on the running turbine.
