Code: 575049

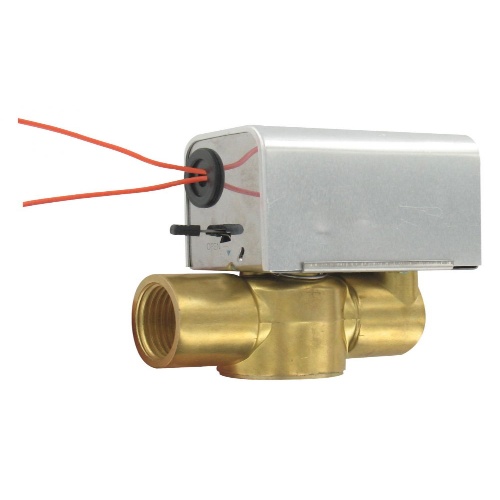

Dwyer ZV1244-NO Two-Way Zone Valve
Normally In Stock
Dwyer ZV1244-NO - Two-way zone valve, 1" BSPT, 24 VAC.
Condition: New
Usually ships Same Day or Next Day$126.20
Sale Price
$105.17
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer ZV1244-NO is a 2-way zone valve designed for temperature control in compatible fluids. It can operate in ambient temperatures ranging from 32 to 104°F and process temperatures from 0 to 201°F. With power options of 120 VAC or 24 VAC, it consumes 6.5 W and has a general purpose enclosure. The valve has a maximum pressure limit of 300 psi and offers quick opening flow characteristic.
Specifications
(Instrument-Sensor) Supply Voltage
24 VAC
(Instrument-Sensor) Application
Liquid
Component
Valve
(Instrument-Sensor) Supply Voltage
120 VAC
(Instrument-Sensor) Temperature Range
Ambient: 32 - 104°F/0 - 40°C
Sub Component
Two-Way Zone Valve
(Instrument-Sensor) Temperature Range
Process: 0 - 201°F/0 - 94°C
Manufacturer
Dwyer Instruments
Features
ZV1 Series Zone Valves are ideal for flow control in hot and cold water HVAC systems
Zone valves are typically used in conjunction with a thermostat to control room temperature
The ZV1 is electrically driven to open and spring to close
Units are available in 1/2˝, 3/4˝, and 1˝ sizes with 24 or 120 VAC power supply
Easy to install these units are direct replacements for competitor units
Manual override lever is easily accessible externally
Consult factory for 220 VAC power supply, optional auxiliary switches, and BSP or sweat connections.
