Code: 574472

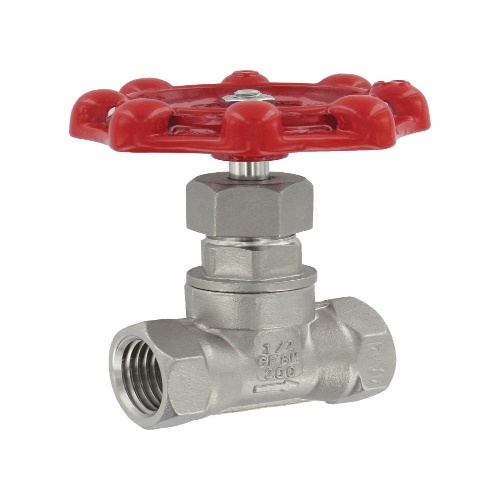

Dwyer HGV03 Hand Operated Globe Valve
Normally In Stock
Dwyer HGV03 - Hand operated globe valve, 3/4" female NPT, Cv of 5.76.
Condition: New
Usually ships Same Day or Next Day$144.12
Sale Price
$120.10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer HGV03 is a Hand Operated Globe Valve that can withstand temperatures ranging from -20 to 356°F (-28.9 to 180°C). It is designed for use with compatible liquids and gases. The wetted material includes CF8M (316) SS for the body, bonnet, and packing nut, while the disc, stem, retainer ring, and gland are made from 316 SS. The packing is made of PTFE. It has a pressure limit of 725 psi (50 bar) from -20 to 200°F (-28.9 to 93.3°C), 500 psi (34.5 bar) at 300°F (148.9°C), 450 psi (31.0 bar) at 325°F (162.8°C), and 100 psi (6.9 bar) at 350°F (176.7°C). It has a Female NPT process connection. The hand wheel is made of cast iron, the plate is aluminum, and the wheel nut is 316 SS.
Specifications
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Application
Gas
Component
Valve
Sub Component
Hand Operated Globe Valve
(Instrument-Sensor) Temperature Range
-20 - 356°F/-28.9 - 180°C
Manufacturer
Dwyer Instruments
Features
Threaded ends conform to ANSI B 2.1, BS 21, DIN 259/2999, ISO 228
Stainless steel inside screw, screwed bonnet, swivel disc integral seat, rising stem and hand wheel
