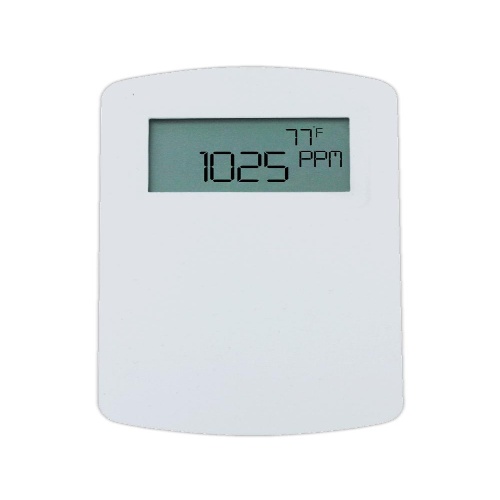

Dwyer CDT-2N44-LCD Carbon Dioxide/Temperature Transmitter
Normally In Stock
Code: 574368
Dwyer CDT-2N44-LCD - Carbon Dioxide/Temperature, Wall Mount, universal current/voltage output, North American Housing, LCD Display.
Condition: New
Usually ships Same Day or Next Day$352.75
Sale Price
$293.96
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer CDT-2N44-LCD is a Carbon Dioxide/Temperature Transmitter with an accuracy of ±40 PPM + 3% of reading (2000 PPM CO2), ± 50 PPM + 5% of reading (5000 PPM CO2), and ±1°C @ 25°C. It has a response time of 2 min and operates within a temperature range of 32 to 122°F. Power requirement is 16-35 VDC or 19-28 VAC, with an average power consumption of 2 w. Output options include current, voltage, relay, or RTD/thermistor. Suitable for NDIR applications with 15-year life expectancy.
Specifications
Component
Transmitter
(Instrument-Sensor) Temperature Range
32 - 122°F/0 - 50°C
(Instrument-Sensor) Supply Voltage
16-35 VDC
(Instrument-Sensor) Supply Voltage
19-28 VAC
(Instrument-Sensor) Measurement Accuracy
2.0%
(Instrument-Sensor) Measurement Accuracy
5.0%
(Instrument-Sensor) Measurement Accuracy
3.0%
Manufacturer
Dwyer Instruments
Features
Minimize inventory and save time by combining CO2 and temperature measurements into one transmitter
Requires minimal maintenance with Automatic Baseline Correction (ABC) to account for sensor drift
Reduce operation costs using a low energy, reliable, and repeatable CO2 sensor
Simplify installation with backplate electrical connection
Downloads
Code: 574368
Dwyer CDT-2N44-LCD Carbon Dioxide/Temperature Transmitter
