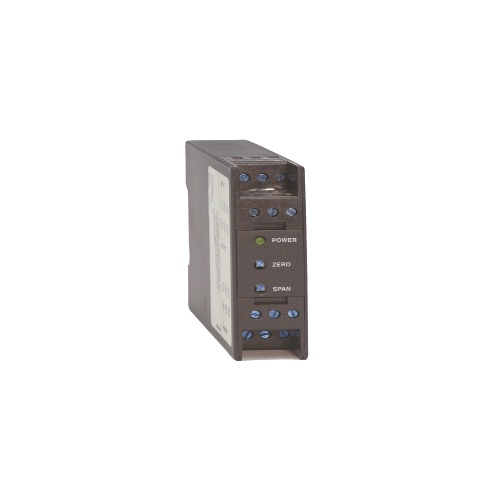

Dwyer SC4151B Iso Verter® II Signal Conditioning Module
Normally In Stock
Code: 573811
Dwyer SC4151B - RTD transmitter, DIN, range 0 to 100°C.
Condition: New
Usually ships Same Day or Next Day$510.61
Sale Price
$425.51
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer SC4151B is an Iso Verter® II Signal Conditioning Module with a drift range of ±0.02%/°C - ±0.05%/°C. It operates on a voltage range of 85 - 265 VDC/VAC or 12 - 24 VDC/VAC, and mounts on a DIN Rail. It offers a linearity of 0.1% of full scale and has an isolation rating of 1500 VAC RMS. The compact case size measures 0.866" W x 2.950" H x 3.880" D. Output loads supported include up to 600 Ω for current and a minimum of 500 Ω for voltage (with a maximum of 20 mA). The input characteristics of the SC4151 model include an RTD search current of less than 500 µA and a 3 MΩ impedance.
Specifications
Component
Iso Verter® II Signal Conditioning Module
Manufacturer
Dwyer Instruments
Features
The SC4151 RTD Transmitters each offer a fixed scale range input (selected when ordered) and a linearized, isolated, field selectable 4 to 20 mA or 0 to 10 VDC output. Output is selected by simple switch settings. Low Voltage units (SCL) are also available.
