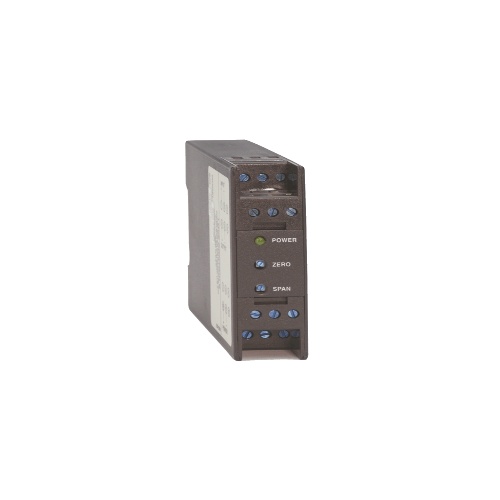

Dwyer SC4130P Iso Verter® II Signal Conditioning Module
Normally In Stock
Code: 573810
Dwyer SC4130P - Thermocouple transmitter, type K, range 0 to 2000°F.
Condition: New
Usually ships Same Day or Next Day$510.61
Sale Price
$425.51
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer SC4130P is an Iso Verter® II Signal Conditioning Module with a compact DIN Rail mounting. It offers a drift range of ±0.02%/°C to ±0.05%/°C, a wide voltage input range of 85-265 VDC/VAC and 12-24 VDC/VAC, and features 1500 VAC RMS isolation. With a case size of 0.866" W x 2.950" H x 3.880" D, it provides excellent linearity of 0.1% of full scale. The module is compatible with various input characteristics including voltage, current, and impedance. Output loads include a maximum of 600 Ω for current and a minimum of 500 Ω with a maximum of 20 mA for voltage.
Specifications
Component
Iso Verter® II Signal Conditioning Module
Manufacturer
Dwyer Instruments
Features
The SC4130 Thermocouple Transmitter offers a fixed scale range input (selected when ordered) and a linearized, isolated, field selectable 4 to 20 mA or 0 to 10 VDC output. Output is selected by simple switch settings. Low Voltage units (SCL) are also available.
