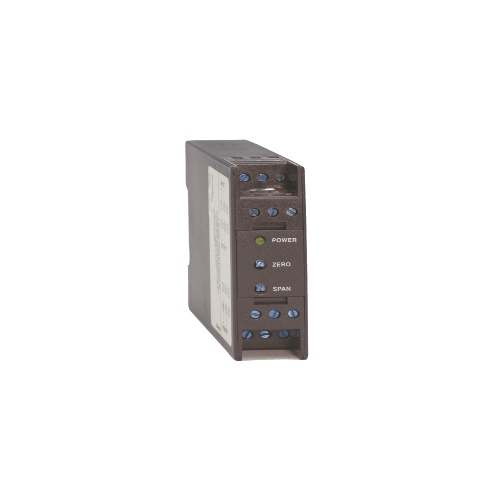

Dwyer SC4130A Iso Verter® II Signal Conditioning Module
Normally In Stock
Code: 573806
Dwyer SC4130A - Thermocouple transmitter, type J, range -100 to 200°C.
Condition: New
Usually ships Same Day or Next Day$496.97
Sale Price
$414.14
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer SC4130A Iso Verter® II Signal Conditioning Module is a versatile and reliable component, ideal for signal conditioning applications. With a drift ranging from ±0.02%/°C to ±0.05%/°C, and voltage input ranging from 85-265 VDC/VAC and 12-24 VDC/VAC, it ensures accurate and stable signal conversion. Its compact DIN Rail mounting and case size of 0.866" W x 2.950" H x 3.880" D make installation easy. The module offers excellent linearity of 0.1% of full scale and impressive isolation of 1500 VAC RMS. It can handle output loads of 600 Ω maximum for current and 500 Ω minimum for voltage (with a maximum of 20 mA). Depending on the input characteristic required, it provides voltage impedance of 1 MΩ, current impedance of 10 Ω, or search current of < 500 µA.
Specifications
Component
Iso Verter® II Signal Conditioning Module
Manufacturer
Dwyer Instruments
Features
The SC4130 Thermocouple Transmitter offers a fixed scale range input (selected when ordered) and a linearized, isolated, field selectable 4 to 20 mA or 0 to 10 VDC output. Output is selected by simple switch settings. Low Voltage units (SCL) are also available.
