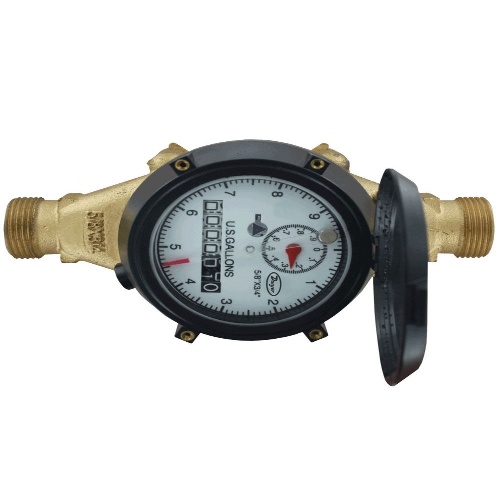

Dwyer WRBT-A-C-05-10 is a multi-jet water meter designed for measuring water flow. With a temperature range of up to 122°F (50°C) and accuracy of ±3% for transitional flow and ±1.5% for nominal flow, it provides reliable readings. It features color-coded lead wires for easy electrical connections, a pulse output with frequency proportional to flow rate, and a pressure limit of 150 psi (10 bar). The wetted material includes ECO BRASS® for the body and couplings, and ABS Plastic for the measuring chamber. The meter is suitable for horizontal mounting with the register facing up. It has an electrical rating of 0.01 A @ 24 VAC/DC and comes with pulse options of 10 gal or 100 gal per pulse.
