Dwyer WRBT-A-C-02-10 Multi-Jet Water Meter With Removable Bottom
Normally In Stock
Code: 573337
Dwyer WRBT-A-C-02-10 - Multi-jet water meter with removable bottom, 5/8" x 3/4" pipe size, 10 gal output.
Condition: New
Usually ships Same Day or Next Day$233.24
Sale Price
$194.37
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

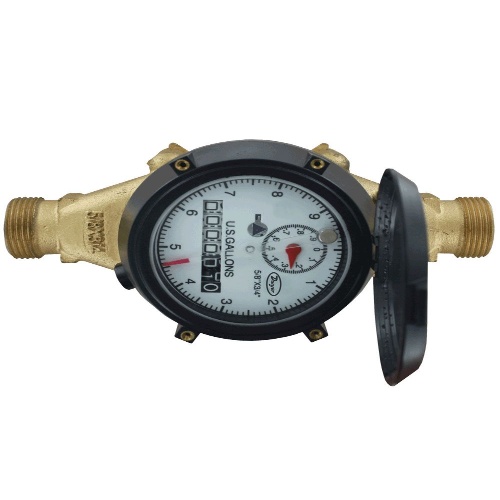

Dwyer WRBT-A-C-02-10 is a multi-jet water meter with a removable bottom. It has an accuracy of ±3% for transitional flow and ±1.5% for nominal flow. The meter has color-coded lead wires and a pulse output with frequency proportional to flow rate. It is designed for water service and can be mounted horizontally with the register facing up. The wetted material includes ECO BRASS® for the body and couplings, and ABS plastic for the measuring chamber. The meter has a pressure limit of 150 psi and an electrical rating of 0.01 A @ 24 VAC/DC. The flow range and totalizing display maximum can be found in the model chart on the catalog page. Pulse options include 10 gal or 100 gal per pulse.
Specifications
(Instrument-Sensor) Application
Water
(Instrument-Sensor) Measurement Accuracy
1.5%
Component
Water Meter
(Instrument-Sensor) Temperature Range
122°F/50°C
(Instrument-Sensor) Type
Multi-Jet Water Meter
(Instrument-Sensor) Measurement Accuracy
3.0%
Manufacturer
Dwyer Instruments
