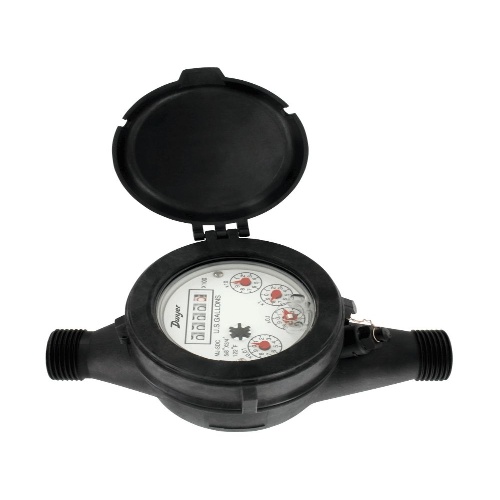

Dwyer WPT-B-C-09-10 Multi-Jet Plastic Water Meter
Normally In Stock
Code: 573225
Dwyer WPT-B-C-09-10 - Multi-Jet plastic water meter, 32mm pipe size with 10 liter pulse output.
Condition: New
Usually ships Same Day or Next Day$203.18
Sale Price
$169.32
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer WPT-B-C-09-10 is a Multi-Jet Plastic Water Meter with a temperature rating of 122°F (50°C). It offers accurate measurements with a ±3% tolerance for transitional flow and ±1.5% for nominal flow. The water meter has color-coded lead wires, a pulse output signal, and can be mounted horizontally with the register facing up. It is made of high-quality materials such as Nylon 66, ABS Plastic, and lead-free ECO BRASS®, and can withstand pressure up to 150 psi (10 bar). The electrical rating is 0.01 A @ 24 VAC/DC. The flow range and totalizing display maximum can be found in the model chart on the catalog page. The water meter offers pulse options of 0.1 gal, 1 gal, 10 gal, and 100 gal per pulse (1 L, 10 L, 100 L, 1000 per pulse). Other pulse output options are available upon consultation with the manufacturer.
Specifications
(Instrument-Sensor) Application
Water
(Instrument-Sensor) Measurement Accuracy
1.5%
Component
Water Meter
(Instrument-Sensor) Type
Multi-Jet Plastic Water Meter
(Instrument-Sensor) Temperature Range
122°F/50°C
(Instrument-Sensor) Measurement Accuracy
3.0%
Manufacturer
Dwyer Instruments
Features
Plastic body ideal for lead free requirements
Multi-jet design allows for simplicity and accuracy with wide flow ranges, even in low flow applications
Magnetically driven, hermetically sealed register does not leak or fog and is completely separated from the water
Designed for long service life and maintenance-free operation
Integral strainer that protects meter from particulate damage
Easy installation with included coupling adapters
Pulsed output proportional to flow allows for remote flow totalization
