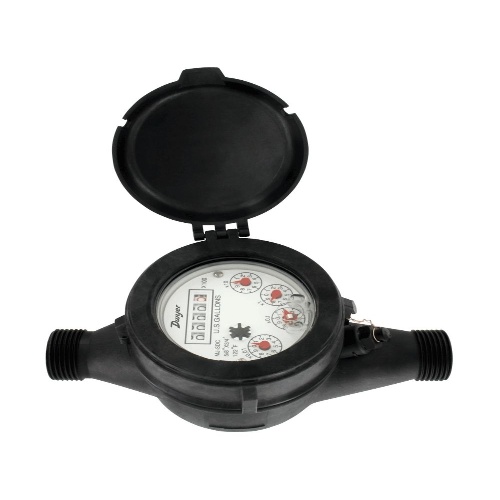

Dwyer WPTN-A-C-02 Multi-Jet NSF Certified Plastic Water Meter
Normally In Stock
Code: 573185
Dwyer WPTN-A-C-02 - Multi-Jet plastic water meter with NSF Approval, 5/8" X 3/4" pipe size with 0.1 gallon pulse output
Condition: New
Usually ships Same Day or Next Day$177.59
Sale Price
$147.99
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer WPTN-A-C-02 Multi-Jet NSF Certified Plastic Water Meter is a reliable and accurate meter for measuring water flow. With a temperature range of up to 112°F (50°C) and an accuracy of ±3% for minimum flow and ±1.5% for nominal flow, this meter ensures precise measurements. It features 3.5mm² stranded lead wires for electrical connections and provides a pulse output with a frequency proportional to the flow rate. The meter is suitable for water service and can be mounted horizontally with the meter face facing up. The wetted materials include body, couplings, and measuring chamber made of durable plastic. It has a pressure limit of 150 psi (10 bar) and an electrical rating of 0.01 A @ 24 VAC/DC. The flow range and totalizing display maximum can be referred to on the model chart. Pulse options include 0.1 gal, 1 gal, 10 gal, and 100 gal per pulse (1 L, 10 L, 100 L, 1000 L per pulse*), as specified in the model chart. The pressure drop curve should be consulted for pressure drop information.
Specifications
(Instrument-Sensor) Application
Water
(Instrument-Sensor) Measurement Accuracy
1.5%
Component
Water Meter
(Instrument-Sensor) Type
Multi-Jet Nsf Certified Plastic Water Meter
(Instrument-Sensor) Temperature Range
112°F/50°C
(Instrument-Sensor) Measurement Accuracy
3.0%
Manufacturer
Dwyer Instruments
Features
Plastic, NSF certified body is ideal for potable water applications
Multi-jet design allows for accuracy in various flow ranges, even in low flow applications
Magnetically driven, hermetically sealed register does not leak or fog and is completely separated from the water
Designed for long service life and maintenance-free operation
Integral strainer protects meter from particulate damage
Included coupling adapters simplify installation
Pulsed output proportional to flow allows for remote flow totalization
