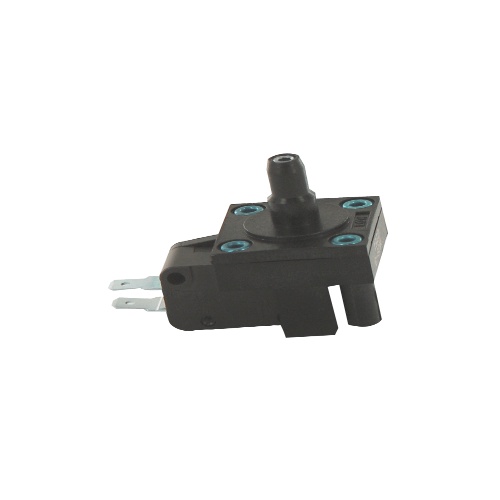

Dwyer MVS-4 Miniature Vacuum Switch
Normally In Stock
Code: 573120
Dwyer MVS-4 - Miniature vacuum switch, min. set point 3" w.c. (8 mbar), max. set point 8" w.c. (20 mbar), 1/8" male NPT process connection.
Condition: New
Usually ships Same Day or Next Day$40.39
Sale Price
$33.66
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer MVS-4 is a miniature vacuum switch designed for use with air or compatible fluids on the "high side". It has a temperature range of 40 to 150°F (4 to 66°C) and electrical rating varying from 3 A to 15 A. The switch is SPDT with silver contacts and brass terminals. Mounting is done using #2 screws and the switch has a compact design with a polycarbonate housing and polyurethane diaphragm.
Specifications
(Instrument-Sensor) Application
Air
(Instrument-Sensor) Application
Compatible Fluids
(Instrument-Sensor) Temperature Range
40 - 150°F/4 - 66°C
Component
Vacuum Switch
Manufacturer
Dwyer Instruments
Features
High switch cycle means long life for extended duty applications
