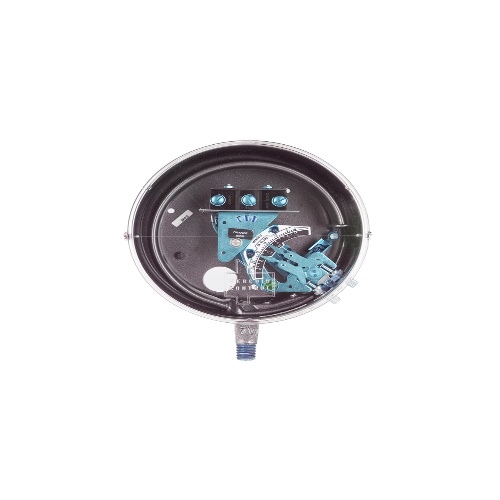

Dwyer DA-7041-153-22E Bourdon Tube Pressure Switch
Normally In Stock
Code: 572886
Dwyer DA-7041-153-22E - Pressure switch, 316SS Bourdon tube, range 75-800 psig, 180 psig min. deadband.
Condition: New
Usually ships Same Day or Next Day$1990.43
Sale Price
$1658.69
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer DA-7041-153-22E is a Bourdon Tube Pressure Switch with a temperature range of 180°F (82°C). It has a general purpose, weatherproof or explosion-proof enclosure rating and screw terminal electrical connections. It can be mounted vertically and has wetted materials of brass, 403 SS, or 316 SS. It has a maximum pressure limit and various process connection options. The switch type can be SPST or SPDT, with options for mercury or snap switch. Set point adjustment is done via thumbscrew, and conduit connections vary based on the enclosure type. The deadband is specified on the catalog page.
Specifications
Component
Pressure Switch
(Instrument-Sensor) Type
Bourdon Tube
(Instrument-Sensor) Temperature Range
180°F/82°C
Manufacturer
Dwyer Instruments
Features
Visible calibrated dial provides an easy and fast check without having to open device causing dangerous conditions to operators
On/off indication (except hermetically sealed snap switch models) gives operator clear indication of state of switched equipment that could be located in another location
Adjustable or fixed deadband supports control applications by reducing equipment wear-out by unnecessary recycling
External switch set point adjustment reduces set-up time
Pressure ranges of full vacuum to 8000 psig gives application designers the ability to specify standard equipment, simplifying install and training, and reducing servicing costs
UL listed, CSA approved, many models FM approved to support rigorous process applications and regulations
General purpose, weatherproof or explosion-proof enclosures for a variety of indoor or outdoor environments meeting the needs of multiple applications and uses
