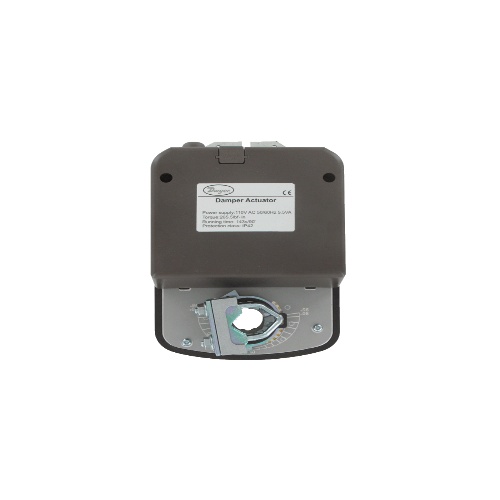

Dwyer DDB71 Non-Spring Return Direct Coupled Actuator
Normally In Stock
Code: 572550
Dwyer DDB71 - Non-spring return direct coupled actuator, size/torque 177 in-lb (20 N m), 110 VAC.
Condition: New
Usually ships Same Day or Next Day$282.53
Sale Price
$235.44
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer DDB71 is a Non-Spring Return Direct Coupled Actuator, suitable for temperature ranges of -22 to 122°F (-30 to 50°C). It offers high accuracy of ±5% and is available in power requirements of 110 VAC, 24 VAC, ±10%, 50/60 Hz, and optional 230 VAC for versatility. The NEMA 2 (IP42) enclosure ensures durability, while the included accessories and terminal block electrical connections make installation easy. With an adjustable angle of rotation of 95° and overload protection, this actuator guarantees efficient operation. It also features a visual indicator for position indication, manual override, and different control input options depending on the model. With a life expectancy of 60000 full cycles and low sound emissions (<45 dB), this actuator is built to last and deliver exceptional performance.
Specifications
(Instrument-Sensor) Supply Voltage
24 VAC
(Instrument-Sensor) Supply Voltage
110 VAC
(Instrument-Sensor) Supply Voltage
230 VAC
Component
Actuator
Sub Component
Non-Spring Return Direct Coupled Actuator
(Instrument-Sensor) Temperature Range
-22 - 122°F/-30 - 50°C
(Instrument-Sensor) Measurement Accuracy
5.0%
Manufacturer
Dwyer Instruments
Features
Direct mount
Actuator travel indicator
Overload protection
Manual override
Floating control signal on DDB
Modulating 4 to 20 mA or 0 to 10 VDC control signal on DDD
Position feedback signal on DDD
60,000 cycles nominal
