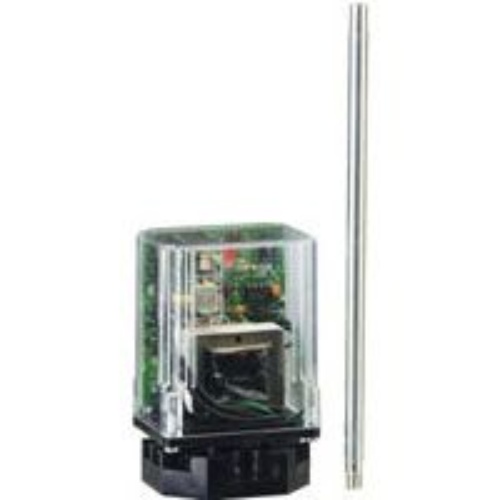

Dwyer LLC-82 Conductivity Controller
Normally In Stock
Code: 572545
Dwyer LLC-82 - Threaded mounting coupling.
Condition: New
Usually ships Same Day or Next Day$129.41
Sale Price
$107.84
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer LLC-82 Conductivity Controller is a versatile and accurate solution for monitoring electrically conductive fluids. With a temperature range of -40 to 150°F (-40 to 65°C) and ±0.25% FS accuracy, it ensures precise control. It can be powered by 120 VAC or 240 VAC and mounted either on an 8 pin octal or DIN mount. The 316 stainless steel and PTFE wetted materials make it suitable for various applications. Pressure limit is 400 psig (27 bar), and it has an electrical rating of 10 Amps resistive, 1/3 hp @ 120/240 VAC. Switch type is SPDT with N.O. or N.C. options. The probe length is 72 inches (1.82 m) with 1/4" (6.3 mm) diameter, 316 SS electrodes. The controller sensitivity can be either 10K Ω or 26K Ω.
Specifications
(Instrument-Sensor) Measurement Accuracy
0.25%
(Instrument-Sensor) Supply Voltage
240 VAC
(Instrument-Sensor) Supply Voltage
120 VAC
Component
Conductivity Controller
(Instrument-Sensor) Type
Conductivity
(Instrument-Sensor) Temperature Range
Controller: -40 - 150°F/-40 - 65°C
(Instrument-Sensor) Temperature Range
Probes: 406°F/207°C
Manufacturer
Dwyer Instruments
Features
Control valves, pumps and alarms with the versatile Series LLC Conductivity Level Controller
Select the required number of probes for single or dual point level detection
Choose probe lengths in 1-foot increments (up to six feet) to adapt the LLC to your specific applications requirements
The LLC features rugged 1/4˝ (6.3 mm) diameter, SS probes, LED monitoring, surge protection, low voltage sensor and different mounting options.
