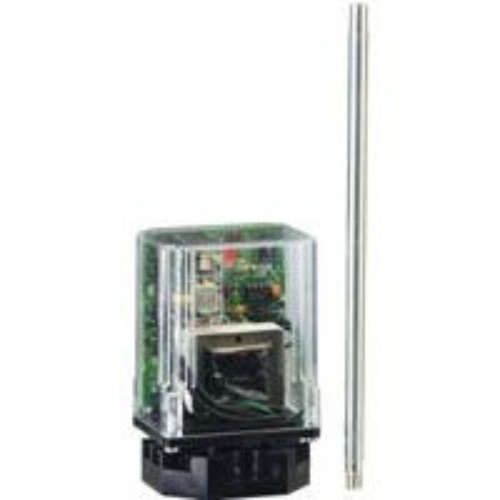

Dwyer LLC-36 Conductivity Controller
Normally In Stock
Code: 572544
Dwyer LLC-36 - Probe, 6 ft. (1.8 m) long.
Condition: New
Usually ships Same Day or Next Day$247.99
Sale Price
$206.66
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer LLC-36 Conductivity Controller is a versatile monitoring solution for electrically conductive fluids. With an accuracy of ±0.25% FS and a wide temperature range of -40 to 150°F (-40 to 65°C), it ensures precise control. The 72-inch probe is made of 316 stainless steel, and the wetted material includes PTFE. It requires a power supply of 120 or 240 VAC and can be mounted using an 8 pin octal or DIN mount. The probes have a pressure limit of 400 psig (27 bar) and feature 1/4" (6.3 mm) diameter electrodes. The controller has a sensitivity of either 10K Ω or 26K Ω and incorporates an SPDT switch type with N.O. or N.C. options.
Specifications
(Instrument-Sensor) Measurement Accuracy
0.25%
(Instrument-Sensor) Supply Voltage
240 VAC
(Instrument-Sensor) Supply Voltage
120 VAC
Component
Conductivity Controller
(Instrument-Sensor) Type
Conductivity
(Instrument-Sensor) Temperature Range
Controller: -40 - 150°F/-40 - 65°C
(Instrument-Sensor) Temperature Range
Probes: 406°F/207°C
Manufacturer
Dwyer Instruments
Features
Control valves, pumps and alarms with the versatile Series LLC Conductivity Level Controller
Select the required number of probes for single or dual point level detection
Choose probe lengths in 1-foot increments (up to six feet) to adapt the LLC to your specific applications requirements
The LLC features rugged 1/4˝ (6.3 mm) diameter, SS probes, LED monitoring, surge protection, low voltage sensor and different mounting options.
