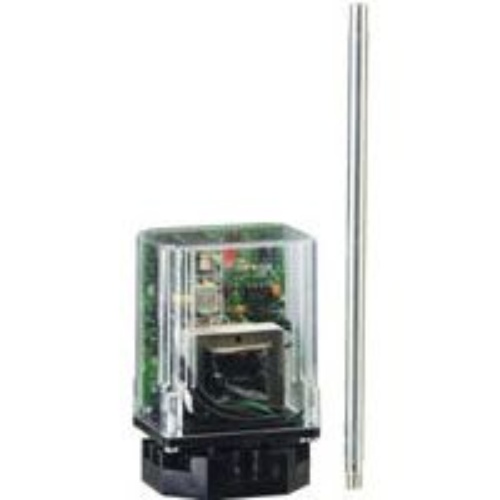

Dwyer LLC-35 Conductivity Controller
Normally In Stock
Code: 572543
Dwyer LLC-35 - Probe, 5 ft. (1.5 m) long.
Condition: New
Usually ships Same Day or Next Day$201.91
Sale Price
$168.26
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer LLC-35 Conductivity Controller is a versatile temperature and conductivity monitoring system. It features a wide temperature range of -40 to 150°F (-40 to 65°C) and an accuracy of ±0.25% FS. With a power requirement of 120 VAC or 240 VAC, it can be easily installed using an 8 pin octal or DIN mount. The wetted material is made of 316 stainless steel and PTFE, ensuring durability while handling electrically conductive fluids. The probes have a pressure limit of 400 psig (27 bar) and a maximum temperature rating of 406°F (207°C). The electrical rating of the controller is 10 Amps resistive, 1/3 hp @ 120/240 VAC, with an SPDT switch type. The 72-inch (1.82 m) probe length and 1/4" (6.3 mm) diameter electrodes provide flexibility for various applications. The controller sensitivity can be set to 10K Ω or 26K Ω.
Specifications
(Instrument-Sensor) Measurement Accuracy
0.25%
(Instrument-Sensor) Supply Voltage
240 VAC
(Instrument-Sensor) Supply Voltage
120 VAC
Component
Conductivity Controller
(Instrument-Sensor) Type
Conductivity
(Instrument-Sensor) Temperature Range
Controller: -40 - 150°F/-40 - 65°C
(Instrument-Sensor) Temperature Range
Probes: 406°F/207°C
Manufacturer
Dwyer Instruments
Features
Control valves, pumps and alarms with the versatile Series LLC Conductivity Level Controller
Select the required number of probes for single or dual point level detection
Choose probe lengths in 1-foot increments (up to six feet) to adapt the LLC to your specific applications requirements
The LLC features rugged 1/4˝ (6.3 mm) diameter, SS probes, LED monitoring, surge protection, low voltage sensor and different mounting options.
