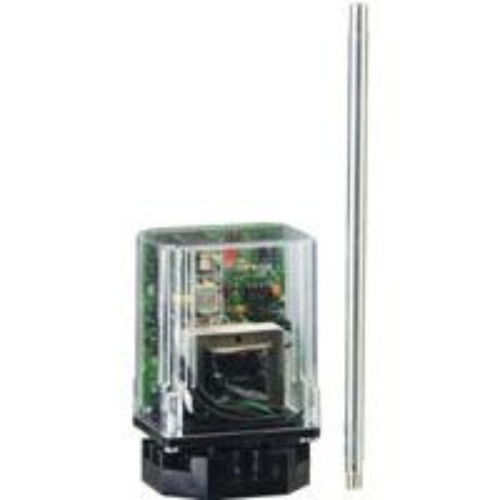

Dwyer LLC-34 Conductivity Controller
Normally In Stock
Code: 572542
Dwyer LLC-34 - Probe, 4 ft. (1.2 m) long.
Condition: New
Usually ships Same Day or Next Day$165.30
Sale Price
$137.75
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer LLC-34 Conductivity Controller is a versatile and reliable product for controlling electrically conductive fluids. It features a temperature controller with a wide range of -40 to 150°F (-40 to 65°C) and probes with high temperature resistance up to 406°F (207°C). The accuracy is ±0.25% FS. It is compatible with 120 VAC or 240 VAC power requirements and can be mounted using an 8 pin octal or DIN mount. The wetted material is 316 stainless steel and PTFE. The pressure limit for probes is 400 psig (27 bar). With an electrical rating of 10 Amps resistive and 1/3 hp @ 120/240 VAC, this controller is suitable for multiple applications. The switch type is SPDT, N.O. or N.C., and probe length is 72 inches (1.82 m). The electrodes are 1/4" (6.3 mm) diameter, made of 316 SS. Controller sensitivity options include 10K Ω or 26K Ω.
Specifications
(Instrument-Sensor) Measurement Accuracy
0.25%
(Instrument-Sensor) Supply Voltage
240 VAC
(Instrument-Sensor) Supply Voltage
120 VAC
Component
Conductivity Controller
(Instrument-Sensor) Type
Conductivity
(Instrument-Sensor) Temperature Range
Controller: -40 - 150°F/-40 - 65°C
(Instrument-Sensor) Temperature Range
Probes: 406°F/207°C
Manufacturer
Dwyer Instruments
Features
Control valves, pumps and alarms with the versatile Series LLC Conductivity Level Controller
Select the required number of probes for single or dual point level detection
Choose probe lengths in 1-foot increments (up to six feet) to adapt the LLC to your specific applications requirements
The LLC features rugged 1/4˝ (6.3 mm) diameter, SS probes, LED monitoring, surge protection, low voltage sensor and different mounting options.
