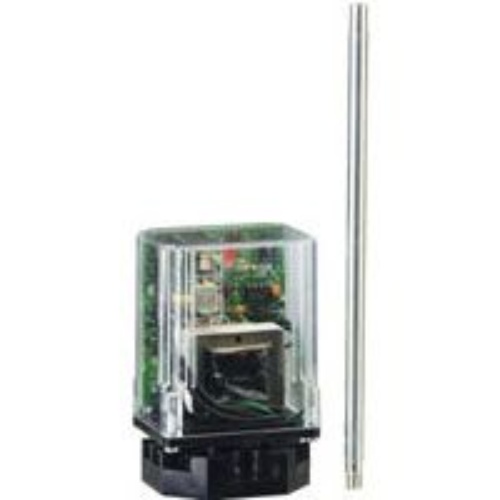

Dwyer LLC-33 Conductivity Controller
Normally In Stock
Code: 572541
Dwyer LLC-33 - Probe, 3 ft. (.9 m) long.
Condition: New
Usually ships Same Day or Next Day$123.96
Sale Price
$103.30
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer LLC-33 Conductivity Controller regulates electrically conductive fluids with high precision. It has a temperature range of -40 to 150°F (-40 to 65°C) and probes that can handle up to 406°F (207°C). With an accuracy of ±0.25% FS and power requirement of 120 VAC or 240 VAC, it is versatile and reliable. The mounting options include an 8 pin octal or DIN mount for the controller and a 3/8" Male NPT for the probes. The wetted material consists of durable 316 stainless steel and PTFE. The probes have a pressure limit of 400 psig (27 bar) and an electrode diameter of 1/4" (6.3 mm) made from 316 SS. The controller sensitivity can be set at either 10K Ω or 26K Ω. Electrical rating is 10 Amps resistive, and the switch type is SPDT, N.O. or N.C. A long probe length of 72 inches (1.82 m) ensures compatibility with various applications.
Specifications
(Instrument-Sensor) Measurement Accuracy
0.25%
(Instrument-Sensor) Supply Voltage
240 VAC
(Instrument-Sensor) Supply Voltage
120 VAC
Component
Conductivity Controller
(Instrument-Sensor) Type
Conductivity
(Instrument-Sensor) Temperature Range
Controller: -40 - 150°F/-40 - 65°C
(Instrument-Sensor) Temperature Range
Probes: 406°F/207°C
Manufacturer
Dwyer Instruments
Features
Control valves, pumps and alarms with the versatile Series LLC Conductivity Level Controller
Select the required number of probes for single or dual point level detection
Choose probe lengths in 1-foot increments (up to six feet) to adapt the LLC to your specific applications requirements
The LLC features rugged 1/4˝ (6.3 mm) diameter, SS probes, LED monitoring, surge protection, low voltage sensor and different mounting options.
