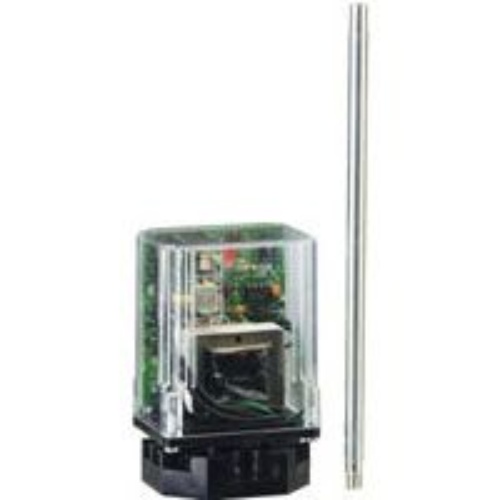

Dwyer LLC-215 Conductivity Controller
Normally In Stock
Code: 572535
Dwyer LLC-215 - Conductivity controller, 240 VAC, 10K ohm sensitivity, DIN mount socket style.
Condition: New
Usually ships Same Day or Next Day$594.92
Sale Price
$495.77
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer LLC-215 Conductivity Controller is a versatile temperature controller with a temperature range of -40 to 150°F (-40 to 65°C) for the controller and 406°F (207°C) for the probes. It offers an accuracy of ±0.25% FS and can be powered by either 120 VAC or 240 VAC. The controller can be mounted using an 8 pin octal or DIN mount, while the probes feature a 3/8" Male NPT mounting. It is suitable for use with electrically conductive fluids and is constructed with 316 stainless steel and PTFE materials. The probes have a pressure limit of 400 psig (27 bar) and can handle an electrical rating of 10 Amps resistive or 1/3 hp @ 120/240 VAC. The switch type is SPDT, N.O. or N.C., and the probe length is 72 inches (1.82 m). The electrodes have a diameter of 1/4" (6.3 mm) and are made of 316 SS. The controller sensitivity options include 10K Ω or 26K Ω.
Specifications
(Instrument-Sensor) Measurement Accuracy
0.25%
(Instrument-Sensor) Supply Voltage
240 VAC
(Instrument-Sensor) Supply Voltage
120 VAC
Component
Conductivity Controller
(Instrument-Sensor) Type
Conductivity
(Instrument-Sensor) Temperature Range
Controller: -40 - 150°F/-40 - 65°C
(Instrument-Sensor) Temperature Range
Probes: 406°F/207°C
Manufacturer
Dwyer Instruments
Features
Control valves, pumps and alarms with the versatile Series LLC Conductivity Level Controller
Select the required number of probes for single or dual point level detection
Choose probe lengths in 1-foot increments (up to six feet) to adapt the LLC to your specific applications requirements
The LLC features rugged 1/4˝ (6.3 mm) diameter, SS probes, LED monitoring, surge protection, low voltage sensor and different mounting options.
