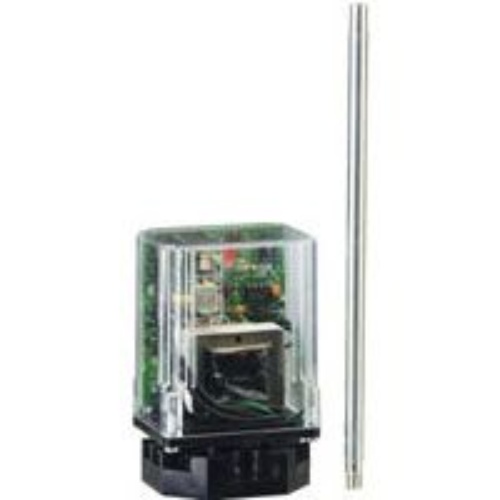

Dwyer LLC-128 Conductivity Controller
Normally In Stock
Code: 572534
Dwyer LLC-128 - Conductivity controller, 120 VAC, 26K ohm sensitivity, 8-pin octal socket style.
Condition: New
Usually ships Same Day or Next Day$549.24
Sale Price
$457.70
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer LLC-128 Conductivity Controller is a versatile and accurate controller for electrically conductive fluids. It has a wide temperature range of -40 to 150°F (-40 to 65°C), with probes capable of withstanding up to 406°F (207°C). With an accuracy of ±0.25% FS, it ensures precise control. The controller can be easily mounted using an 8 pin octal or DIN mount, while the probes have a 3/8" Male NPT connection. The wetted materials are 316 stainless steel and PTFE, ensuring durability and resistance to corrosion. The probes can withstand pressures up to 400 psig (27 bar). It has an electrical rating of 10 Amps resistive, 1/3 hp @ 120/240 VAC, and is equipped with a SPDT switch type. The probe length is 72 inches (1.82 m) with 1/4" (6.3mm) diameter electrodes. The controller sensitivity options are 10K Ω or 26K Ω.
Specifications
(Instrument-Sensor) Measurement Accuracy
0.25%
(Instrument-Sensor) Supply Voltage
240 VAC
(Instrument-Sensor) Supply Voltage
120 VAC
Component
Conductivity Controller
(Instrument-Sensor) Type
Conductivity
(Instrument-Sensor) Temperature Range
Controller: -40 - 150°F/-40 - 65°C
(Instrument-Sensor) Temperature Range
Probes: 406°F/207°C
Manufacturer
Dwyer Instruments
Features
Control valves, pumps and alarms with the versatile Series LLC Conductivity Level Controller
Select the required number of probes for single or dual point level detection
Choose probe lengths in 1-foot increments (up to six feet) to adapt the LLC to your specific applications requirements
The LLC features rugged 1/4˝ (6.3 mm) diameter, SS probes, LED monitoring, surge protection, low voltage sensor and different mounting options.
