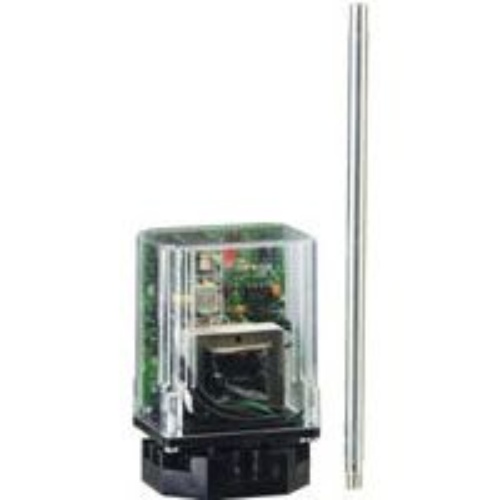

Dwyer LLC-118 Conductivity Controller
Normally In Stock
Code: 572532
Dwyer LLC-118 - Conductivity controller, 120 VAC, 10K ohm sensitivity, 8-pin octal socket style.
Condition: New
Usually ships Same Day or Next Day$549.24
Sale Price
$457.70
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer LLC-118 Conductivity Controller is a versatile temperature and conductivity monitoring solution for electrically conductive fluids. It offers a wide temperature range (-40 to 150°F) and excellent accuracy (±0.25% FS). With a choice of power requirements (120 VAC or 240 VAC), it is adaptable to different environments. The controller can be mounted using an octal or DIN mount, while the probes feature a 3/8" Male NPT fitting. The wetted material is made of durable 316 stainless steel and PTFE. Pressure limit for probes is 400 psig (27 bar). The electrical rating is 10 Amps resistive, 1/3 hp @ 120/240 VAC. It also comes with a SPDT switch type, offering both N.O. and N.C options. The probe length is 72 inches (1.82 m) and features 1/4" (6.3 mm) diameter 316 SS electrodes. The controller sensitivity can be adjusted to either 10K Ω or 26K Ω.
Specifications
(Instrument-Sensor) Measurement Accuracy
0.25%
(Instrument-Sensor) Supply Voltage
240 VAC
(Instrument-Sensor) Supply Voltage
120 VAC
Component
Conductivity Controller
(Instrument-Sensor) Type
Conductivity
(Instrument-Sensor) Temperature Range
Controller: -40 - 150°F/-40 - 65°C
(Instrument-Sensor) Temperature Range
Probes: 406°F/207°C
Manufacturer
Dwyer Instruments
Features
Control valves, pumps and alarms with the versatile Series LLC Conductivity Level Controller
Select the required number of probes for single or dual point level detection
Choose probe lengths in 1-foot increments (up to six feet) to adapt the LLC to your specific applications requirements
The LLC features rugged 1/4˝ (6.3 mm) diameter, SS probes, LED monitoring, surge protection, low voltage sensor and different mounting options.
