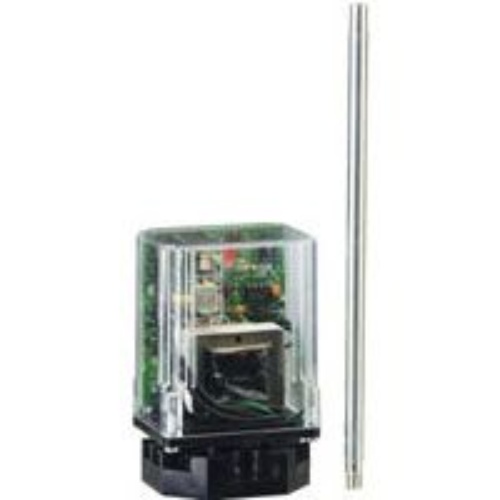

Dwyer LLC-115 Conductivity Controller
Normally In Stock
Code: 572531
Dwyer LLC-115 - Conductivity controller, 120 VAC, 10K ohm sensitivity, DIN mount socket style.
Condition: New
Usually ships Same Day or Next Day$547.82
Sale Price
$456.52
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer LLC-115 Conducivity Controller accurately measures electrically conductive fluids. It has a temperature range of -40 to 150°F (-40 to 65°C) and a ±0.25% FS accuracy. The controller can be mounted using an 8 pin octal or DIN mount. It operates on 120 or 240 VAC power and has a SPDT switch type. With a pressure limit of 400 psig (27 bar), the probes are made of 316 stainless steel and are equipped with 1/4" (6.3 mm) diameter, 316 SS electrodes. 10K Ω or 26K Ω controller sensitivity allows for precise control.
Specifications
(Instrument-Sensor) Measurement Accuracy
0.25%
(Instrument-Sensor) Supply Voltage
240 VAC
(Instrument-Sensor) Supply Voltage
120 VAC
Component
Conductivity Controller
(Instrument-Sensor) Type
Conductivity
(Instrument-Sensor) Temperature Range
Controller: -40 - 150°F/-40 - 65°C
(Instrument-Sensor) Temperature Range
Probes: 406°F/207°C
Manufacturer
Dwyer Instruments
Features
Control valves, pumps and alarms with the versatile Series LLC Conductivity Level Controller
Select the required number of probes for single or dual point level detection
Choose probe lengths in 1-foot increments (up to six feet) to adapt the LLC to your specific applications requirements
The LLC features rugged 1/4˝ (6.3 mm) diameter, SS probes, LED monitoring, surge protection, low voltage sensor and different mounting options.
