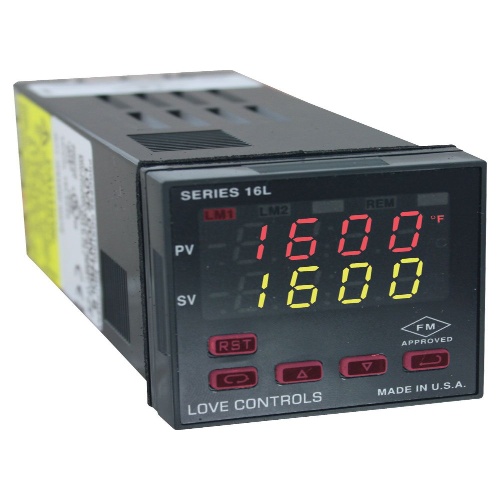

Dwyer 16L2083 Limit Control
Normally In Stock
Code: 572154
Dwyer 16L2083 - MODEL 16L2083 DC-SSR/RELAY N.O
Condition: New
Usually ships Same Day or Next Day$658.33
Sale Price
$548.61
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer 16L2083 is a reliable limit control device with a temperature range of 14 to 131°F (-10 to 55°C). It offers an accuracy rate of ±0.25% of span, ±1 least significant digit. The power requirement is 100 to 240 VAC or 132 to 240 VDC, and it has a relay output of SPST with a maximum power consumption of 5 VA. The device features a NEMA 4X (IP66) front panel rating and selectable inputs including thermocouples, RTDs, and DC voltage or current. It is equipped with a nonvolatile memory and a two 4 digit, 7 segment LED display.
Specifications
(Instrument-Sensor) Measurement Accuracy
0.25%
(Instrument-Sensor) Supply Voltage
100-240 VAC
(Instrument-Sensor) Supply Voltage
132-240 VDC
(Instrument-Sensor) Temperature Range
14 - 131°F/-10 - 55°C
Component
Temperature Control
Manufacturer
Dwyer Instruments
Features
The 16L Series temperature/process FM Approved Limit Controls set a new standard in 1/16 DIN limit controls
The 16L offers universal input (10 thermocouple types, 4 RTD types, voltage, and current), single set point or dual set point
Standard features include remote reset capability, peak/valley indication, open sensor protection, input rate of change protection, and much more
Unit offers 1500 VAC resolution, selectable high or low input, programmable sensor break protection and adjustable differential
Outputs include normally open (form A) and normally closed (form B) relays
Form A and form B relays can be setup one for each set point output and logically linked to emulate a form C output
Designed and built in the USA, the 16L family of controls offers the highest levels of features, function, and quality available today
