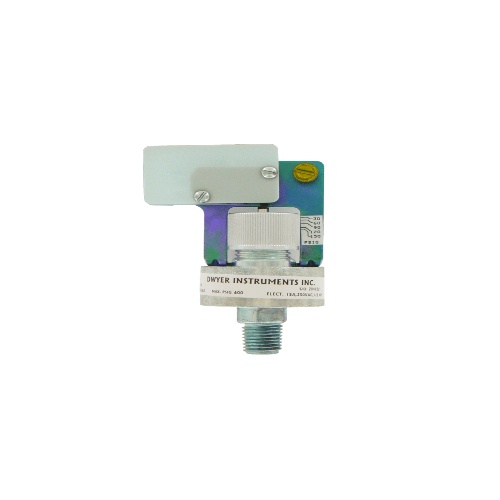

Dwyer A1VS-14 Economical Pressure Switch
Normally In Stock
Code: 572082
Dwyer A1VS-14 - Economical pressure switch, set point range 6-28" Hg (-20 to -94 kPa), ±1.2" Hg (-4 kPa) repeatability, 3-14" Hg (-10 to -47 kPa) deadband.
Condition: New
Usually ships Same Day or Next Day$98.56
Sale Price
$82.13
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer A1VS-14 is an economical pressure switch with a temperature range of -31 to 185°F (-35 to 85°C). It has three screw terminals for electrical connections and is compatible with liquids or gases. The wetted materials are Buna-N diaphragm with a zinc alloy body and chromate finish. It has a pressure limit of 600 psig and a 1/4" male NPT process connection. The electrical rating is 15 A @ 250 VAC and 1/2 HP @ 250 VAC. It has a SPDT snap action switch type and a cycling rate not exceeding 1 Hz. The set point is field adjustable via a knurled screw cap. It has a diaphragm sensor element and vacuum limits of 29.9" Hg for vacuum and compound models.
Specifications
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Application
Gas
Component
Pressure Switch
(Instrument-Sensor) Type
Economical
(Instrument-Sensor) Temperature Range
-31 - 185°F/-35 - 85°C
Manufacturer
Dwyer Instruments
