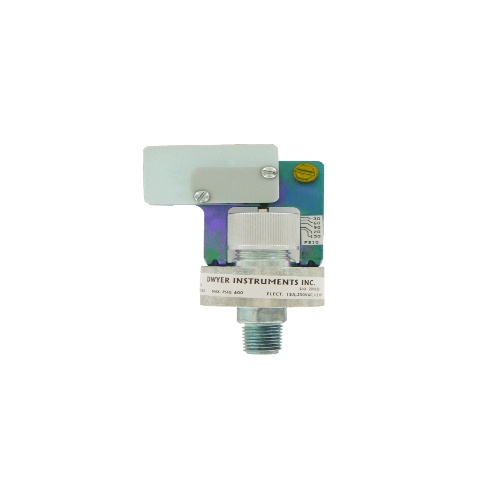

Dwyer A1PS-14 Economical Pressure Switch
Normally In Stock
Code: 572078
Dwyer A1PS-14 - Economical pressure switch, set point range 1.5-3.5 psi (10-24 kPa), ±0.15 psi (1 kPa) repeatability, 0.5-1.7 psi (3-11 kPa) deadband.
Condition: New
Usually ships Same Day or Next Day$110.22
Sale Price
$91.85
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer A1PS-14 is an economical pressure switch designed for a wide temperature range of -31 to 185°F (-35 to 85°C). It features three screw terminals for electrical connections and has a pressure limit of 600 psig. The switch type is SPDT snap action, and it has a field-adjustable set point. The pressure switch is compatible with liquids and gases and has a zinc alloy body with a chromate finish. The electrical rating is 15A @ 250VAC, suitable for resistance and 1/2 HP applications. With its diaphragm sensor element, 1/4" male NPT process connection, and vacuum limits of 29.9" Hg, this pressure switch offers reliable performance and versatility.
Specifications
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Application
Gas
Component
Pressure Switch
(Instrument-Sensor) Type
Economical
(Instrument-Sensor) Temperature Range
-31 - 185°F/-35 - 85°C
Manufacturer
Dwyer Instruments
Features
15 A contact allows direct control reducing costs and reliability by having to introduce additional contacts and relays
Field adjustable reduces installation time bring application on-line faster
Downloads
Code: 572078
Dwyer A1PS-14 Economical Pressure Switch
