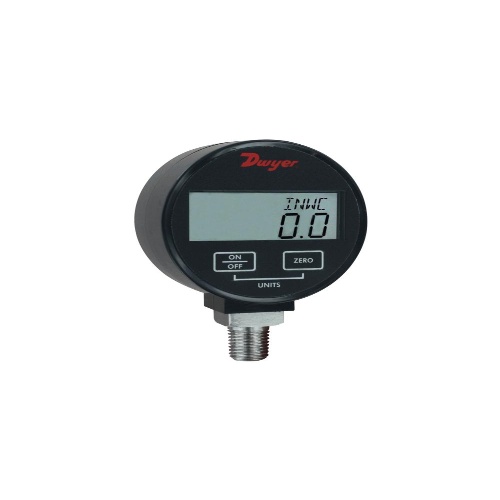

Dwyer DPGW-06 Digital Pressure Gauge With 1% Accuracy
Normally In Stock
Code: 571952
Dwyer DPGW-06 - Digital pressure gauge, range 0 to 30 psi, selectable engineering units: 30.00 psig, 2.109 kg/cm², 2.068 bar, 61.1" Hg, 69.2 ft w.c., 206.8 kPa, 480.0 oz/in², 830" w.c., 2068 mbar, 2109 cm w.c., 1551 mm Hg, 0.01 psi resolution.
Condition: New
Usually ships Same Day or Next Day$202.02
Sale Price
$168.35
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer DPGW-06 is a digital pressure gauge with 1% accuracy, suitable for measuring pressure in liquids and compatible gases. It operates in a temperature range of 30 to 120°F (-1 to 49°C) and has a 4-digit LCD display. The gauge is powered by a 9V alkaline battery, included and user-replaceable. The enclosure is made of ABS plastic, and the wetted material is 316L stainless steel. The gauge has a pressure limit of 2X the pressure range and a maximum pressure of 30 psig in vacuum applications. It has a 1/4" male NPT process connection and a thermal effect of 0.05% FS/°F. The dimensions of the gauge are 2.62" OD x 1.52" deep, and it features a 20-minute auto shut-off function.
Specifications
Component
Digital Pressure Gauge
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Application
Gas
(Instrument-Sensor) Application
Air
(Instrument-Sensor) Measurement Accuracy
1.0%
(Instrument-Sensor) Supply Voltage
9 V Battery
(Instrument-Sensor) Temperature Range
30 - 120°F/-1 - 49°C
Manufacturer
Dwyer Instruments
Features
Push-button zero reduces installation and service time
High accuracy provides exceptional measurement for minimizing costly out of specification conditions
Selectable unit button provides reading in easily recognizable units
Well-suited gage for compatible gas (DPGA) or liquid (DPGW) applications specifying simple operation and accuracy
