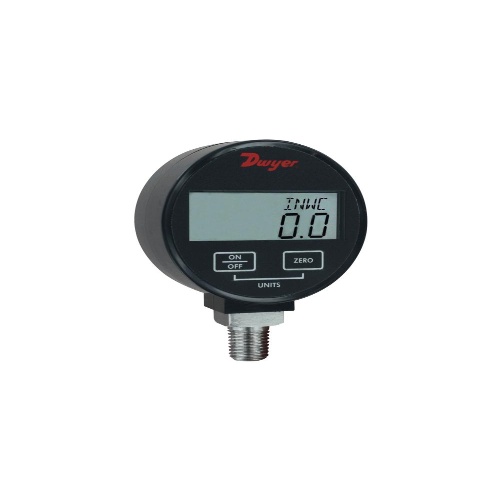

Dwyer DPGW-00 Digital Pressure Gauge With 1% Accuracy
Normally In Stock
Code: 571949
Dwyer DPGW-00 - Digital pressure gauge, range 30" Hg to 0 psi, selectable engineering units: -14.70 psig, -1.033 kg/cm², -1.013 bar, -29.93" Hg, -33.94 ft w.c., -101.4 kPa, -235.2 oz/in², -407.3" w.c., -1013 mbar, -1034 cm w.c., -761 mm Hg, 0.01 psi resolution.
Condition: New
Usually ships Same Day or Next Day$202.02
Sale Price
$168.35
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer DPGW-00 is a digital pressure gauge with 1% accuracy, suitable for measuring pressures of air, liquids, and compatible gases. It has a temperature range of 30 to 120°F (-1 to 49°C) and a pressure limit of 2X the range. The gauge has a 4-digit LCD display and is powered by a 9 V alkaline battery. It features an ABS plastic housing, a 1/4" male NPT process connection, and wetted materials made of 316L SS. The gauge also has a 20-minute auto shut-off function and a compact dimension of 2.62" OD x 1.52" deep.
Specifications
Component
Digital Pressure Gauge
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Application
Gas
(Instrument-Sensor) Application
Air
(Instrument-Sensor) Measurement Accuracy
1.0%
(Instrument-Sensor) Supply Voltage
9 V Battery
(Instrument-Sensor) Temperature Range
30 - 120°F/-1 - 49°C
Manufacturer
Dwyer Instruments
Features
Push-button zero reduces installation and service time
High accuracy provides exceptional measurement for minimizing costly out of specification conditions
Selectable unit button provides reading in easily recognizable units
Well-suited gage for compatible gas (DPGA) or liquid (DPGW) applications specifying simple operation and accuracy
