Dwyer DPGAB-09 0.5% Digital Pressure Gauge
Normally In Stock
Code: 571927
Dwyer DPGAB-09 - Digital pressure gauge w/ boot, range 0-200 psi with 4-digit display, ±0.5% accuracy, battery powered.
Condition: New
Usually ships Same Day or Next Day$239.50
Sale Price
$199.58
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

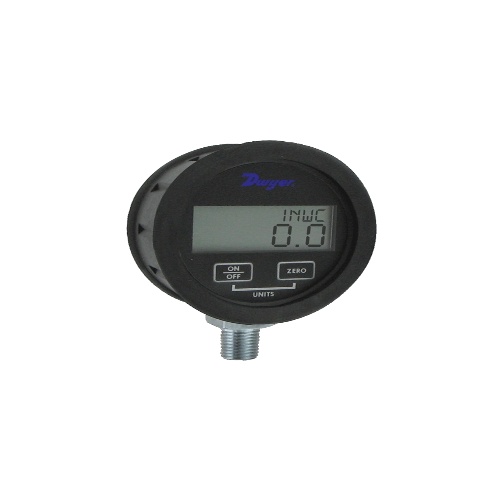

Dwyer DPGAB-09 is a 0.5% Digital Pressure Gauge with a temperature range of 30 to 120°F (-1 to 49°C). It has an accuracy of ±0.5% F.S. and is powered by a 9 V alkaline battery (included and user replaceable). The housing is made of ABS plastic and it is designed for use with air and compatible gases. The gauge features a 4-digit LCD display and has a wetted material of 316L SS with a silicone sensor. The pressure limit is 2X the pressure range and the process connection is 1/4" male NPT. The gauge has dimensions of 2.62" O.D. x 1.52" deep and has a 20 minute auto shut-off feature.
Specifications
Component
Digital Pressure Gauge
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Application
Gas
(Instrument-Sensor) Application
Air
(Instrument-Sensor) Measurement Accuracy
0.50%
(Instrument-Sensor) Supply Voltage
9 V Battery
(Instrument-Sensor) Temperature Range
30 - 120°F/-1 - 49°C
Manufacturer
Dwyer Instruments
Features
Push-button zero reduces installation and service time
High accuracy provides exceptional measurement for minimizing costly out of specification conditions
Selectable unit button provides reading in easily recognizable units
Well-suited gage for compatible gas (DPGA) or liquid (DPGW) applications specifying simple operation and accuracy
