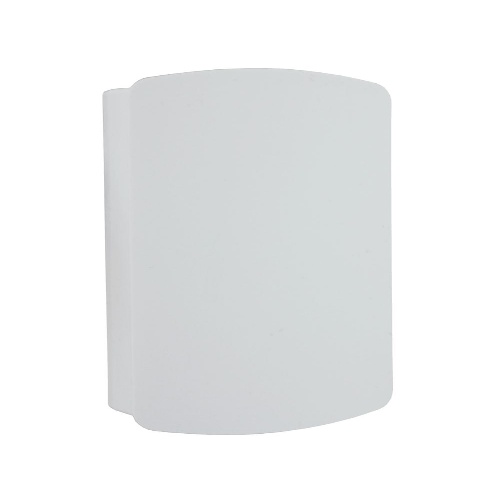

Dwyer RHPLC-3N11 Humidity/Temperature Transmitter
Normally In Stock
Code: 571752
Dwyer RHPLC-3N11 - North American wall mount humidity/temp transmitter, 3% accuracy, 4-20MA humidity and temperature output
Condition: New
Usually ships Same Day or Next Day$148.10
Sale Price
$123.42
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer RHPLC-3N11 Humidity/Temperature Transmitter offers a drift of <0.25% RH/year and a temperature range of -40 to 140°F (-40 to 60°C). It requires power of 10 to 35 VDC for 4 to 20 mA or 0 to 5 VDC output, with various options for voltage output. The response time is 8 seconds. The sensor used is a capacitive polymer, and the unit can measure humidity from 0-100% RH. The housing is made of polycarbonate, and electrical connections are made via a screw terminal block. The accuracy of the RTD temp sensor is ±0.3°C @ 0°C (±0.54°F @ 77°F), while the passive thermistor temp sensor accuracy is ±0.36ºF @ 77°F (±0.2°C @ 25°C). The accuracy of the current/volt temp output is ±0.9°F @ 77°F (±0.5°C @ 25°C). The RH accuracy is ±2% 10 to 90% RH @ 25°C for 2% accuracy units and ±3% 20 to 80% RH @ 25°C for 3% accuracy units.
Specifications
Component
Transmitter
(Instrument-Sensor) Temperature Range
-40 - 140°F/-40 - 60°C
(Instrument-Sensor) Supply Voltage
10-35 VDC
(Instrument-Sensor) Supply Voltage
15-35 VDC
(Instrument-Sensor) Supply Voltage
15-29 VAC
(Instrument-Sensor) Supply Voltage
10-29 VAC
Manufacturer
Dwyer Instruments
Features
Wide application environments from a large selection of temperature sensors and 2% to 3% accuracies
Reduced installation cost with combined humidity and temperature sensing
