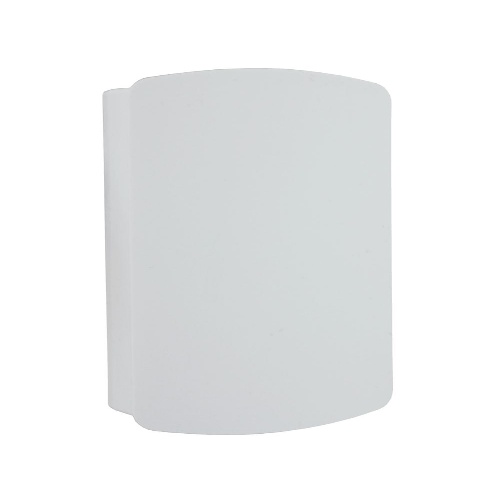

Dwyer RHPLC-2N22 Humidity/Temperature Transmitter
Normally In Stock
Code: 571751
Dwyer RHPLC-2N22 - North American wall mount humidity/temp transmitter, 2% accuracy, 0-10VDC humidity and temperature output
Condition: New
Usually ships Same Day or Next Day$164.64
Sale Price
$137.20
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer RHPLC-2N22 is a humidity/temperature transmitter with a drift of <0.25% RH/year. It operates in a temperature range of -40 to 140°F (-40 to 60°C) and requires a power supply of 10 to 35 VDC for 4 to 20 mA or 0 to 5 VDC output. The response time is 8 s (π63) and it features a capacitive polymer sensor for humidity measurements. The enclosure is made of polycarbonate and it has screw terminal block electrical connections. The accuracy for temperature readings varies depending on the type of sensor used, with the best accuracy being ±0.3°C @ 0°C (±0.54°F @ 77°F). The RH accuracy is ±2% 10 to 90% RH @ 25°C.
Specifications
Component
Transmitter
(Instrument-Sensor) Temperature Range
-40 - 140°F/-40 - 60°C
(Instrument-Sensor) Supply Voltage
10-35 VDC
(Instrument-Sensor) Supply Voltage
15-35 VDC
(Instrument-Sensor) Supply Voltage
15-29 VAC
(Instrument-Sensor) Supply Voltage
10-29 VAC
Manufacturer
Dwyer Instruments
Features
Wide application environments from a large selection of temperature sensors and 2% to 3% accuracies
Reduced installation cost with combined humidity and temperature sensing
