Code: 571514

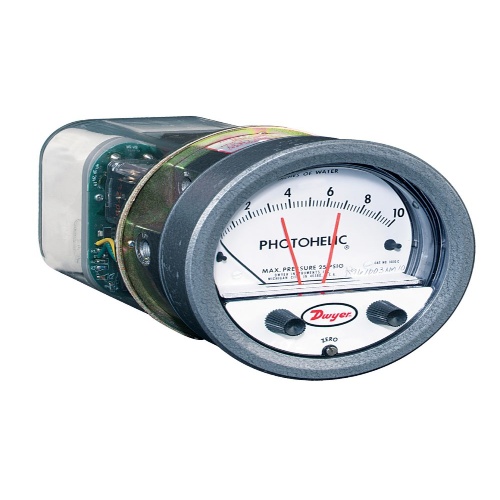

Dwyer A3000-100MM Photohelic® Pressure Switch/Gauge
Normally In Stock
Dwyer A3000-100MM - Pressure switch/gauge, range 0-100 mm w.c.
Condition: New
Usually ships Same Day or Next Day$840.46
Sale Price
$700.38
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer A3000-100MM Photohelic® Pressure Switch/Gauge is a reliable and accurate device for monitoring air and compatible gases. With a temperature range of 20 to 120°F (-6.67 to 48.9°C) and an accuracy of ±2% of FS at 70°F (21.1°C), it ensures precise measurements. The switch/gauge features a 4" dial face, adjustable knobs for set point adjustment, and 2 Form C relays for each setpoint. The power requirement is 120 VAC, with optional 240 VAC and 24 VAC power. Installation is simple with screw terminals and a vertical mounting orientation.
Specifications
(Instrument-Sensor) Supply Voltage
24 VAC
(Instrument-Sensor) Supply Voltage
240 VAC
(Instrument-Sensor) Supply Voltage
120 VAC
(Instrument-Sensor) Application
Air And Non-Combustible Compatible Gases
Component
Pressure Switch
(Instrument-Sensor) Temperature Range
20 - 120°F/ -6.67 - 48.9°C
(Instrument-Sensor) Temperature Range
-20 - 120°F/-28 - 48.9°C
(Instrument-Sensor) Measurement Accuracy
2.0%
(Instrument-Sensor) Measurement Accuracy
3.0%
(Instrument-Sensor) Measurement Accuracy
4.0%
Manufacturer
Dwyer Instruments
(Instrument-Sensor) Type
Photohelic
Features
3-in-1 instrument allows the reduction of several instruments with one product, saving inventory, installation time and money
Patented design and 1% full-scale dead band provides quick response to pressure changes means no delay in switching and chatter-free operation
A wide range of models that can meet pressure measurement specifications from low to very high
