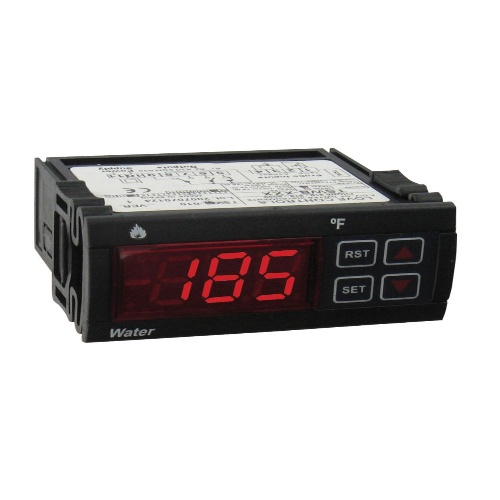

Dwyer TSWB-010 Digital Temperature/Water Level Switch
Normally In Stock
Code: 571465
Dwyer TSWB-010 - Temperature/water level switch, 115 VAC, °F.
Condition: New
Usually ships Same Day or Next Day$187.64
Sale Price
$156.37
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer TSWB-010 is a Digital Temperature/Water Level Switch designed for a temperature range of 32 to 158ºF (-30 to 70ºC). It has an accuracy of >1% of FS and multiple power requirements: 115 VAC ± 10%, 230 VAC ± 10%, 24 VAC/DC ± 10%, 12 VAC/DC ± 10%. The switch features a 3-digit, red 1/2" display and nonvolatile memory. It has three output relay options and a front protection rating of IP64. The probe range is PTC -58 to 302ºF (-50ºC to 150ºC) and NTC -58 to 230ºF (-50ºC to 110ºC). The control type is on/off, and it has a horsepower rating of 1HP. The switch also includes a conductivity probe with a maximum voltage of 12 VAC.
Specifications
(Instrument-Sensor) Supply Voltage
230 VAC
(Instrument-Sensor) Measurement Accuracy
1.0%
(Instrument-Sensor) Supply Voltage
115 VAC
(Instrument-Sensor) Supply Voltage
24 VAC/DC
(Instrument-Sensor) Supply Voltage
12 VAC/DC
(Instrument-Sensor) Temperature Range
32 - 158°F/0 - 70°C
Sub Component
Digital Temperature/Water Level Switch
Component
Temperature Switch
Manufacturer
Dwyer Instruments
Features
The SERIES TSWB Digital Temperature Switch has a high and a low set point for controlling the water temperature
The low set point can either be manually or automatically reset
This control also has a conductivity probe input
This input supplies12 VAC to the probe to check for low water condition
There are three relay outputs which can be assigned in the field to the high temperature set point, low temperature set point or the low water level input
The Model TS2-K configuration key can make configuring multiple controls quick and easy
