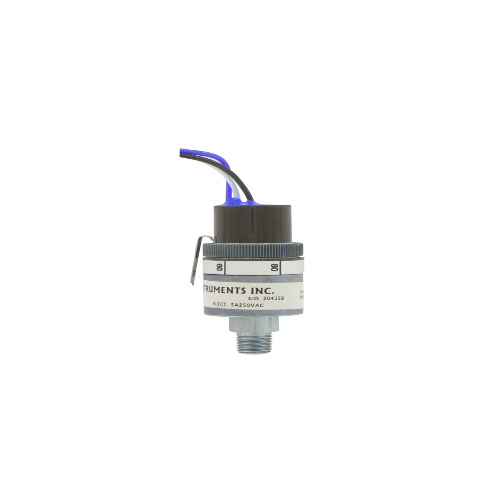

Dwyer AVS-150 Adjustable Pressure Switch
Normally In Stock
Code: 571430
Dwyer AVS-150 - Adjustable pressure switch, set point range 1.6-27.1" Hg (4.1-68.6 cm Hg) increasing, 2.7-28.2" Hg (6.9-71.6 cm Hg) decreasing, ±1.2" Hg (3.1 cm Hg) repeatability, 1.3-2.7" Hg (3.3-6.9 cm Hg) deadband.
Condition: New
Usually ships Same Day or Next Day$263.74
Sale Price
$219.78
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer AVS-150 is an adjustable pressure switch designed for use with compatible liquids or gases. It has a temperature range of -65 to 225°F (-54 to 107°C) and a set point change of up to 2% when used below -10°F (-23°C) or above 125°F (52°C). The switch has a 3-wire, 20 AWG insulated with PVC electrical connection, and can handle an electrical rating of 5 A @ 250 VAC, 3 A @ 28 VDC. It features a SPDT snap action switch type and has a set point that is field adjustable. The sensor element is a capsule which is made of 17-7 PH SS and the fitting is made of 303 stainless steel. The process connection is 1/8" male NPT and the switch has a cycling rate not exceeding 20 CPM. It can handle pressure/vacuum limits of up to 150% of the range.
Specifications
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Application
Gas
Component
Pressure Switch
(Instrument-Sensor) Type
Adjustable
(Instrument-Sensor) Temperature Range
-65 - 225°F/-54 - 107°C
Manufacturer
Dwyer Instruments
