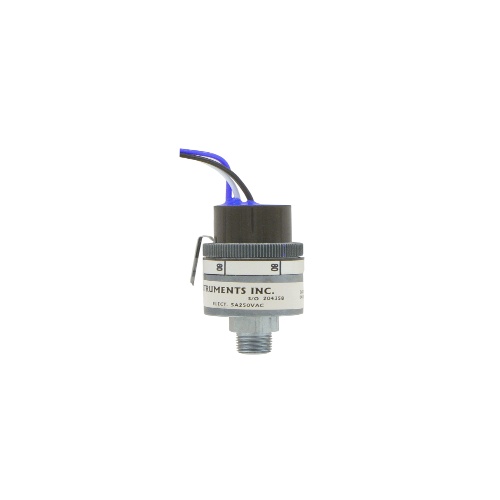

Dwyer APS-350 Adjustable Pressure Switch
Normally In Stock
Code: 571426
Dwyer APS-350 - Adjustable pressure switch, set point range 3.0-96.5 psi (.21-6.7 bar) increasing, 4.5-100 psi (.31-6.9 bar) decreasing, ±2.0 psi (.14 bar) repeatability, 1.6-4 psi (.11-.28 bar) deadband.
Condition: New
Usually ships Same Day or Next Day$273.40
Sale Price
$227.83
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer APS-350 is an adjustable pressure switch ideal for use with liquids or gases. It has a temperature range of -65 to 225°F, with a set point change of up to 2% when used below -10°F or above 125°F. It features a 3-wire, 20 AWG insulated electrical connection, a 1/8" male NPT process connection, and a SPDT snap action switch type. The switch has an electrical rating of 5 A @ 250 VAC and 3 A @ 28 VDC. The wetted material is 17-7 PH SS for the capsule and 303 stainless steel for the fitting. The cycling should not exceed 20 CPM, and the set point is field adjustable. The sensor element is a capsule, and the pressure/vacuum limits are 150% of the range.
Specifications
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Application
Gas
Component
Pressure Switch
(Instrument-Sensor) Type
Adjustable
(Instrument-Sensor) Temperature Range
-65 - 225°F/-54 - 107°C
Manufacturer
Dwyer Instruments
