Code: 571073

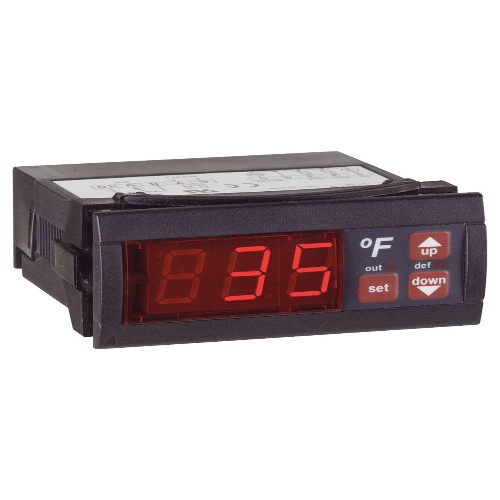

Dwyer TS-13020 Digital Temperature Switch
Normally In Stock
Dwyer TS-13020 - Digital temperature switch, 230 V, 16 A, °F display.
Condition: New
Usually ships Same Day or Next Day$178.58
Sale Price
$148.82
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer TS-13020 is a digital temperature switch suitable for ambient temperatures ranging from 32 to 158°F (0 to 70°C). It offers an accuracy of ±1°C and operates on either 110 VAC, 230 VAC, or 12 VAC/VDC power sources. With a resolution of 1° and storage temperature limits of -4 to 176°F (-20 to 80°C), this switch provides a reliable temperature control solution. It features a 3-digit red display with 1/2" digits and uses a 1.5-inch thermistor as input, which is equipped with a 5 ft cable. The switch also has nonvolatile memory and an IP64 front panel rating. It has a probe range of -58 to 302°F (-50 to 150°C) and offers an output of a 16A SPDT relay at 250 VAC resistive load. Suitable for ON/OFF control, this switch has a horsepower rating of 1 HP for 16A applications.
Specifications
(Instrument-Sensor) Supply Voltage
12 VDC
(Instrument-Sensor) Supply Voltage
110 VAC
(Instrument-Sensor) Supply Voltage
220 VAC
Sub Component
Digital Temperature Switch
(Instrument-Sensor) Temperature Range
Ambient: 32 - 158°F/0 - 70°C
(Instrument-Sensor) Supply Voltage
12 VAC
Component
Temperature Switch
Manufacturer
Dwyer Instruments
Features
The Series TS3 Digital Temperature Switch is the ideal control for on/off heating or cooling applications
This generation of controls has field-selectable engineering units and temperature probe types in order to reduce the combination of parts that need to be stocked
A built-in real time clock is used for HACCP logging of temperature alarms caused by temperatures outside of their set limits or loss of power
For refrigeration applications, the defrost cycle can be initiated based on time or using the front panel keys
For programming multiple units, the model TS2-K configuration key can be used to quickly download parameter settings.
