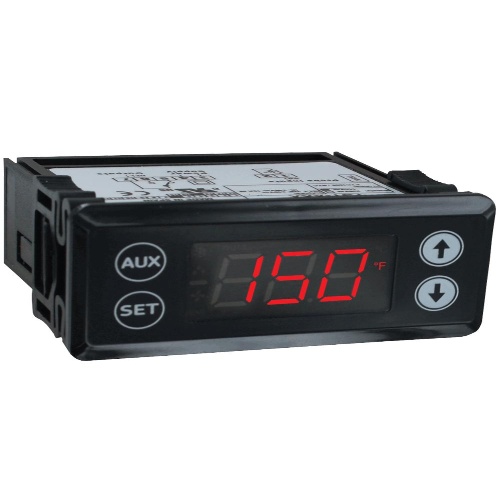

Dwyer TST-031 Digital Temperature Switch
Normally In Stock
Code: 570591
Dwyer TST-031 - Digital thermostat 1 relay output, 1 PTC/NTC probe input, red display, 12 VAC/DC, capacitive touch keys, Modbus®.
Condition: New
Usually ships Same Day or Next Day$78.35
Sale Price
$65.29
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer TST-031 is a digital temperature switch suitable for a temperature range of 32 to 131°F (0 to 55°C) with an accuracy of ±1%. It operates on 115/230 VAC, 24 VAC/VDC, or 12 VAC/VDC power and has a resolution of 0.1°. The switch features a 3-digit display, SPDT relay output, and a front panel rating of IP65. It accepts PTC or NTC thermistors and has a nonvolatile memory. The probe range is -58 to 302°F (-50 to 150°C) for PTC and -58 to 230°F (-50 to 110°C) for NTC. It offers on/off control with a 1 HP horsepower rating.
Specifications
(Instrument-Sensor) Supply Voltage
230 VAC
(Instrument-Sensor) Measurement Accuracy
1.0%
(Instrument-Sensor) Supply Voltage
115 VAC
(Instrument-Sensor) Supply Voltage
24 VAC/DC
(Instrument-Sensor) Supply Voltage
12 VAC/DC
Sub Component
Digital Temperature Switch
(Instrument-Sensor) Temperature Range
32 - 131°F/0 - 55°C
Component
Temperature Switch
Manufacturer
Dwyer Instruments
Features
The Series TST Digital Temperature Switch is designed with many heating and cooling applications in mind
It accepts either PTC or NTC temperature probe types and features 23 parameters including set point, hysteresis, cycle time, and ambient probe adjustment for precise control
Programming performed by either the front keypad or the TS2-K programming key
Standard features include capacitive touch buttons, temperature alarms with internal buzzer, and password protected parameter settings.
