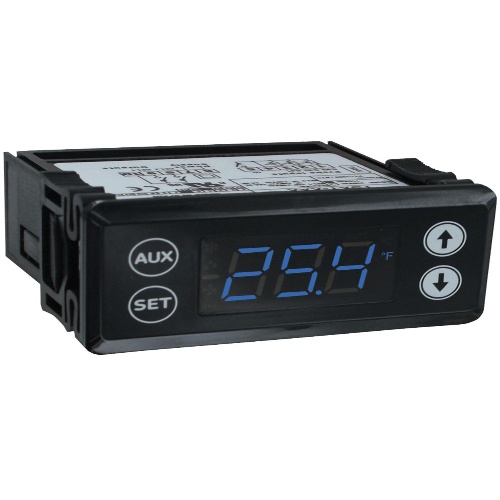

Dwyer TSXT-242 Digital Temperature Switch
Normally In Stock
Code: 570587
Dwyer TSXT-242 - Digital thermostat 2 relay output, 3 PTC/NTC probe input, blue display, 24 VAC/DC, capacitive touch keys, Modbus®.
Condition: New
Usually ships Same Day or Next Day$115.03
Sale Price
$95.86
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer TSXT-242 is a digital temperature switch with a temperature range of 32 to 131°F (0 to 55°C) and an accuracy of ±1% FS. It has multiple power requirements, a resolution of 0.1°, and storage temperature limits of -4 to 176°F (-20 to 80°C). The switch features three SPST relays with different ratings and consumes 3.6 VA at 115/230 VAC or 1.5 VA at 12/24 VAC/VDC. It has a 3-digit display with a plus sign and accepts PTC or NTC thermistors as input. The switch has nonvolatile memory, an IP65 front panel rating, and probe ranges of -58 to 302°F (-50 to 150°C) for PTC and -58 to 230°F (-50 to 110°C) for NTC. It is an on/off switch with defrost options and supports up to 1 HP for Relay 1.
Specifications
(Instrument-Sensor) Supply Voltage
230 VAC
(Instrument-Sensor) Measurement Accuracy
1.0%
(Instrument-Sensor) Supply Voltage
115 VAC
(Instrument-Sensor) Supply Voltage
24 VAC/DC
(Instrument-Sensor) Supply Voltage
12 VAC/DC
Sub Component
Digital Temperature Switch
(Instrument-Sensor) Temperature Range
32 - 131°F/0 - 55°C
Component
Temperature Switch
Manufacturer
Dwyer Instruments
Features
The Series TSXT Digital Temperature Switch is designed with many refrigeration applications in mind
It accepts up to 3 temperature inputs, of either PTC or NTC temperature probe types and can control the compressor, defrost, fan, alarm, and light in a refrigeration system
These switches allow master/slave configuration to synchronize the defrost cycle between different units
The Series TSXT programming performed by the front keypad, the TS2-K programming key, or by RS485 module communication
Standard features include capacitive buttons, real time clock, HACCP alarm logging, temperature alarms, and password protected parameter settings
