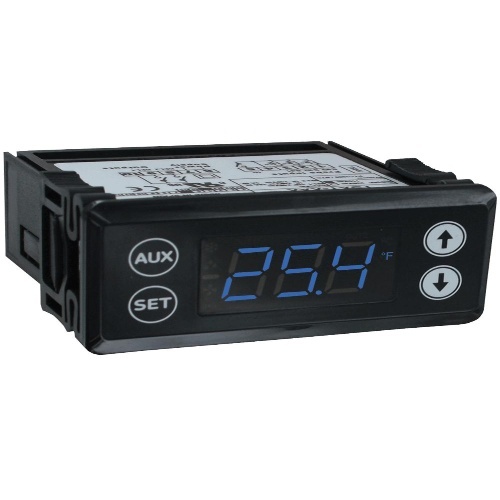

Dwyer TSXT-213 Digital Temperature Switch
Normally In Stock
Code: 570579
Dwyer TSXT-213 - Digital thermostat 3 relay output, 3 PTC/NTC probe input, blue display, 115 VAC, capacitive touch keys, Modbus®.
Condition: New
Usually ships Same Day or Next Day$137.99
Sale Price
$114.99
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer TSXT-213 is a digital temperature switch with a temperature range of 32 to 131°F (0 to 55°C). It has an accuracy of ±1% FS and can be powered by 115 VAC, 230 VAC, 24 VAC/VDC, or 12 VAC/VDC. The switch has a resolution of 0.1° and a storage temperature range of -4 to 176°F (-20 to 80°C). It features three relays with different ratings and consumes 3.6 VA @ 115/230 VAC or 1.5 VA @ 12/24 VAC/VDC. The switch has a 3-digit display with a plus sign and accepts PTC or NTC thermistors for input. It has nonvolatile memory, IP65 front panel rating, and offers on/off control with defrost options. The switch has a probe range of -58 to 302°F (-50 to 150°C) for PTC and -58 to 230°F (-50 to 110°C) for NTC thermistors. It can handle a horsepower rating of 1 HP (Relay 1).
Specifications
(Instrument-Sensor) Supply Voltage
230 VAC
(Instrument-Sensor) Measurement Accuracy
1.0%
(Instrument-Sensor) Supply Voltage
115 VAC
(Instrument-Sensor) Supply Voltage
24 VAC/DC
(Instrument-Sensor) Supply Voltage
12 VAC/DC
Sub Component
Digital Temperature Switch
(Instrument-Sensor) Temperature Range
32 - 131°F/0 - 55°C
Component
Temperature Switch
Manufacturer
Dwyer Instruments
Features
The Series TSXT Digital Temperature Switch is designed with many refrigeration applications in mind
It accepts up to 3 temperature inputs, of either PTC or NTC temperature probe types and can control the compressor, defrost, fan, alarm, and light in a refrigeration system
These switches allow master/slave configuration to synchronize the defrost cycle between different units
The Series TSXT programming performed by the front keypad, the TS2-K programming key, or by RS485 module communication
Standard features include capacitive buttons, real time clock, HACCP alarm logging, temperature alarms, and password protected parameter settings
