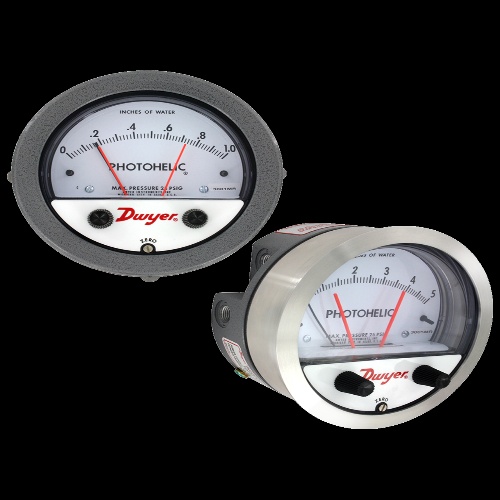

Dwyer 3003MRS Photohelic® Switch/Gauge
Normally In Stock
Code: 570523
Dwyer 3003MRS - Pressure switch/gauge, range 0-3" w.c., .10 minor divisions.
Condition: New
Usually ships Same Day or Next Day$831.71
Sale Price
$693.09
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer 3003MRS Photohelic® Switch/Gauge is a versatile and reliable product. With a temperature range of 20 to 120°F (-6.67 to 48.9°C) and an accuracy of ±2% of FS, this switch/gauge is ideal for air and non-combustible gases. It has a 24 VDC power requirement and comes with an 18" cable assembly with 6 conductors. The setpoint can be easily adjusted using the adjustable knobs on the face. With its compact dimensions and solid state relay switch type, this product is a must-have for precision monitoring and control applications.
Specifications
(Instrument-Sensor) Supply Voltage
24 VDC
(Instrument-Sensor) Supply Voltage
24 VAC
(Instrument-Sensor) Application
Air And Non-Combustible Compatible Gases
Component
Pressure Gauge
(Instrument-Sensor) Temperature Range
20 - 120°F/-6.67 - 48.9°C
(Instrument-Sensor) Type
Photohelic®
(Instrument-Sensor) Measurement Accuracy
2.0%
(Instrument-Sensor) Measurement Accuracy
3.0%
(Instrument-Sensor) Measurement Accuracy
4.0%
Manufacturer
Dwyer Instruments
Features
Gage reading unaffected by switch operation and will continue to read pressure even during power loss
Zero and range adjustments outside of gage means no disassembly in normal service
Solid-state design allows for switching in high cycle rate applications without degradation
Optional stainless steel bezel is the same installation diameter as Magnehelic® gage and simplifies field upgrade to Photohelic® switch/gage
