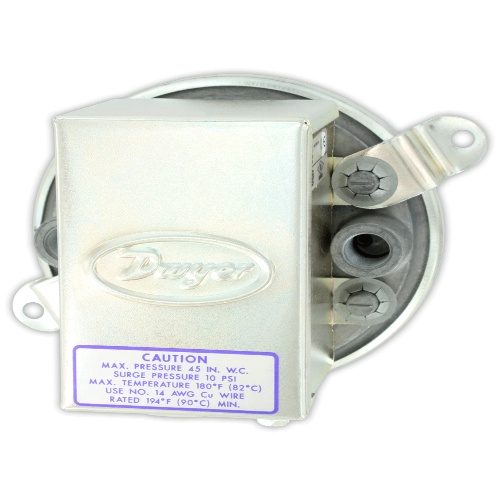

Dwyer 1920-20 Compact Low Differential Pressure Switch
Normally In Stock
Code: 570277
Dwyer 1920-20 - Differential pressure switch, SPDT, range 4 - 20" w.c. with threaded back connections.
Condition: New
Usually ships Same Day or Next Day$133.21
Sale Price
$111.01
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer 1920-20 is a compact low differential pressure switch suitable for air and non-combustible gases. It has a temperature range of -30 to 180°F with a mounting orientation of a vertical diaphragm. The switch features a 3 screw type electrical connection and a single-pole double-throw switch type. It has an electrical rating of 15 A @ 120-480 VAC, 60 Hz and a pressure limit of 45" w.c. The switch can be adjusted using a screw type inside the conduit enclosure.
Specifications
(Instrument-Sensor) Application
Air And Non-Combustible Compatible Gases
Component
Pressure Switch
(Instrument-Sensor) Temperature Range
-30 - 180°F/-34 - 82.2°C
Manufacturer
Dwyer Instruments
Features
Compact size and repeatability, provides a high-value switch for many industrial and OEM applications
Wide range of models from 0.07 in w.c. to 20 in w.c. can meet exacting OEM specifications for a low pressure switch
Range screw protected inside enclosure provides simplifies making adjustments but prevents tampering
