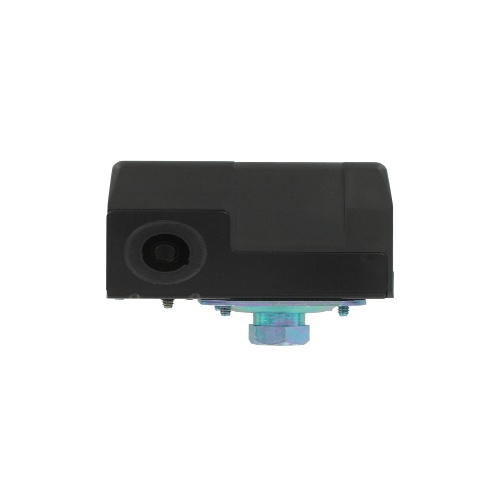

Dwyer CXA-S3 Water Pump Pressure Switch
Normally In Stock
Code: 570248
Dwyer CXA-S3 - Water pump pressure switch, NC, range 35-150 psig (2.4-10.3 bar), approx. adj. deadband 30-40 psig (2.1-2.8 bar), max. pressure 204 psig (14.1 bar).
Condition: New
Usually ships Same Day or Next Day$23.92
Sale Price
$19.93
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer CXA-S3 water pump pressure switch is a versatile product suitable for a wide range of applications. With a temperature rating of 140°F (60°C) and a general-purpose enclosure, this switch can be installed in any position. Its wetted materials include silicone, steel, and stainless steel, ensuring durability. The switch offers a pressure limit specified in the model chart, and its set point can be easily adjusted using internal screws. With an electrical rating of 20 A @ 120 VAC, it provides reliable performance. The DPST snap action switch type and 1/4" female NPT process connection further enhance its functionality.
Specifications
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Application
Gas
Component
Pressure Switch
(Instrument-Sensor) Temperature Range
140°F/60°C
(Instrument-Sensor) Type
Water Pump
Manufacturer
Dwyer Instruments
Features
The set point and deadband are both easily adjustable reducing time to install and operation
Mounting in any position and feature simple makes a reliable switch that can be installed by any skill level
