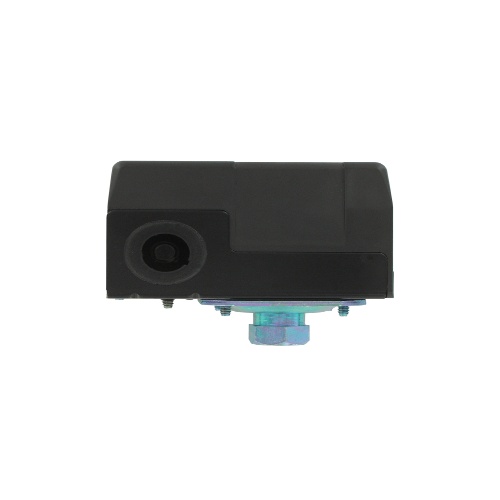

Dwyer CXA-S1 Water Pump Pressure Switch
Normally In Stock
Code: 570246
Dwyer CXA-S1 - Water pump pressure switch, NC, range 15-80 psig (1.0-5.5 bar), approx. adj. deadband 15-30 psig (1.0-2.1 bar), max. pressure 129 psig (8.9 bar).
Condition: New
Usually ships Same Day or Next Day$23.92
Sale Price
$19.93
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer CXA-S1 Water Pump Pressure Switch (SKU) is designed for general purpose use with compatible liquids and gases. It has a temperature rating of 140°F (60°C) and can be installed in any position. The switch features a DPST snap action and has an electrical rating of 20 A @ 120 VAC. It has internal screws for set point adjustment and a 1/4" female NPT process connection. The switch also has a deadband, which can be referenced on the model chart.
Specifications
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Application
Gas
Component
Pressure Switch
(Instrument-Sensor) Temperature Range
140°F/60°C
(Instrument-Sensor) Type
Water Pump
Manufacturer
Dwyer Instruments
Features
The set point and deadband are both easily adjustable reducing time to install and operation
Mounting in any position and feature simple makes a reliable switch that can be installed by any skill level
