Code: 570102

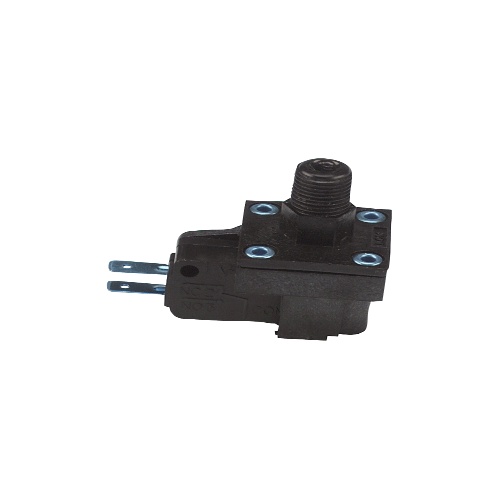

Dwyer MHS-3 Miniature High Sensitivity Pressure Switch
Normally In Stock
Dwyer MHS-3 - Miniature high sensitivity pressure switch, min. set point 28" w.c. (69 mbar), max. set point 111" w.c. (276 mbar).
Condition: New
Usually ships Same Day or Next Day$34.28
Sale Price
$28.57
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer MHS-3 is a Miniature High Sensitivity Pressure Switch designed for air or compatible fluids. It has a temperature range of 40 to 150°F (4 to 66°C) and features a polycarbonate housing with a polyurethane diaphragm. The switch has a pressure limit within the maximum range and offers an SPDT switch type with silver contacts and brass terminals. It has a 1/8" NPT port for process connection and can be mounted using #2 screws through eyelets. The electrical rating differs based on model, with MHS-1 at 3A, MHS-2 at 10A, and MHS-3, -4, -5 at 15A, 125/250 VAC.
Specifications
(Instrument-Sensor) Type
Miniature
Component
Pressure Switch
(Instrument-Sensor) Application
Air
(Instrument-Sensor) Application
Compatible Fluids
(Instrument-Sensor) Temperature Range
40 - 150°F/4 - 66°C
Manufacturer
Dwyer Instruments
Features
The Series MHS Miniature High Sensitivity Pressure Switch offers a wide range of field adjustable pressure set point options
The compact switch can be used with air or other compatible fluids
Ideal application is for turning pumps and compressors on and off when levels change
The Series MHS models offer a variety of electrical ratings to suit application needs
The switch is easy to install and easy to adjust, with a long mechanical life of over 10 million cycles.
