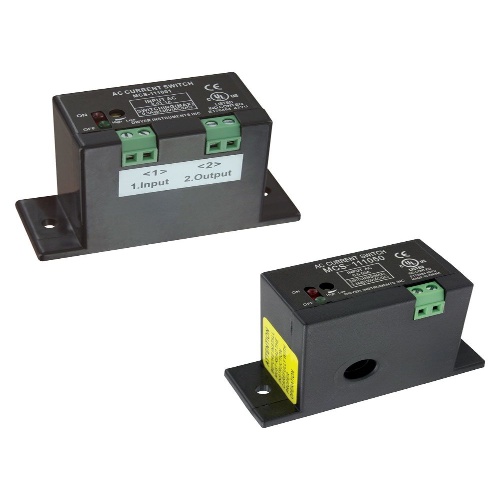

Dwyer MCS-111001 Miniature Current Switch
Normally In Stock
Code: 570089
Dwyer MCS-111001 - No Core Terminal Connect Mini Current Switch.
Condition: New
Usually ships Same Day or Next Day$33.60
Sale Price
$28.00
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer MCS-111001 is a miniature current switch with a temperature range of 32 to 122°F (0 to 50°C). It is self-powered with a fast response time of less than 200 ms. The enclosure is UL 94V-0 flammability rated ABS and has a 600 V insulation class. It can operate in humidity conditions of 10 to 95% RH and has a 1% hysteresis. It has an amperage range of 0.01 to 1 A AC continuous and an isolated, normally open output rating of 0.3 A at 130 V DC/AC.
Specifications
(Instrument-Sensor) Temperature Range
32 - 122°F/0 - 50°C
Component
Miniature Current Switch
Manufacturer
Dwyer Instruments
