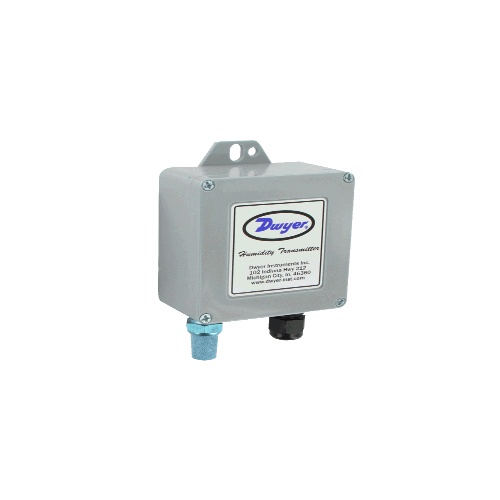

Dwyer WHT-330 Weather-Resistant Humidity/Temperature Transmitter
Normally In Stock
Code: 569888
Dwyer WHT-330 - Water-resistant humidity transmitter with sintered filter, 3% accuracy, 0-5 VDC humidity output.
Condition: New
Usually ships Same Day or Next Day$185.11
Sale Price
$154.26
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer WHT-330 is a weather-resistant humidity/temperature transmitter with a drift of less than 1% RH/year. It operates in a temperature range of -40 to 140°F (-40 to 60°C) and has a response time of 15 seconds. The transmitter's enclosure meets NEMA 3S (IP54) standards and it has a capacitance polymer sensor. The electrical connections are made through removable screw terminal blocks and the output signal can be either 4-20 mA, 0-10 V, or 0-5 V depending on the model. The transmitter has a storage temperature range of -40 to 176°F (-40 to 80°C) and an enclosure made of ABS. Its repeatability is ±0.1% and the hysteresis is ±1%. The RH sensor accuracy is ±2% for 20 to 80% RH and ±3% for 10 to 20% and 80 to 90% RH.
Specifications
(Instrument-Sensor) IP Protection
IP65
(Instrument-Sensor) IP Protection
IP30
Component
Transmitter
(Instrument-Sensor) Temperature Range
-40 - 140°F/-40 - 60°C
(Instrument-Sensor) Supply Voltage
10-35 VDC
(Instrument-Sensor) Supply Voltage
15-35 VDC
(Instrument-Sensor) Supply Voltage
15-29 VAC
Manufacturer
Dwyer Instruments
Features
Reduced installation costs with combination RH and temperature outputs as required
Easy installation into tight spaces with compact NEMA 3S housing
