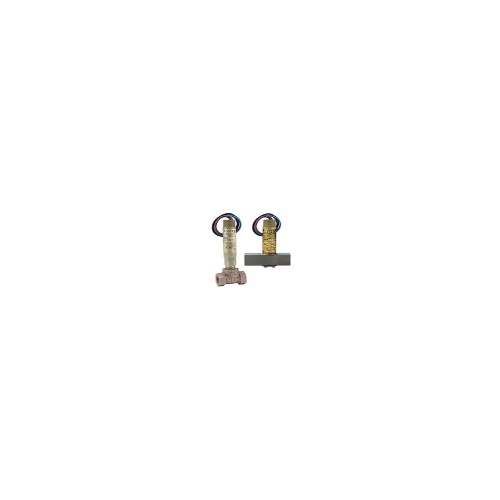

Dwyer V6EPS-S-S-6-0 Flotect® Mini-Size Flow Switch
Normally In Stock
Code: 569871
Dwyer V6EPS-S-S-6-0 - V6EPS-SS60 FLOTECT FLOW SW
Condition: New
Usually ships Same Day or Next Day$474.01
Sale Price
$395.01
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer V6EPS-S-S-6-0 Flotect® Mini-Size Flow Switch is a versatile and reliable component for monitoring flow in gases or liquids. With a temperature range of -4 to 220°F and an enclosure rating of weatherproof and explosion-proof, it is suitable for various environments. It is ATEX compliant and listed with UL and CSA for Class I, Groups A, B, C, and D; Class II, Groups E, F, and G. The switch features a SPDT snap switch, and options such as DPDT relays are available.
Specifications
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Application
Gas
(Instrument-Sensor) Temperature Range
High Temp: 400°F/205°C
(Instrument-Sensor) Hazardous Location Class
Class I - Groups A-D
(Instrument-Sensor) Hazardous Location Class
Class II - Groups E-G
(Instrument-Sensor) Temperature Range
Standard: -4 - 220°F/-20 - 105°C
(Instrument-Sensor) Temperature Range
Ambient: -4 - 167°F/-20 - 75°C
(Instrument-Sensor) Temperature Range
Process: -4 - 220°F/-20 - 105°C
Component
Flow Switch
(Instrument-Sensor) Type
Flotect® Mini-Size Flow Switch
Manufacturer
Dwyer Instruments
Features
Unique magnetically actuated switching design gives superior performance
Features a free-swinging vane which attracts a magnet within the solid metal switch body, actuating a snap switch by means of a simple lever arm with no bellows, springs, or seals to fail
Leak proof body machined from bar stock
Electrical assembly can be easily replaced without removing the unit from installation so that the process does not have to be shut down
Choice of models in a tee with calibrated vane or field adjustable trimmable vane
Easy installation with simple pipe insert via tee and simple electrical switch connections
High-pressure rating of 1000 psig (69 bar) with brass body and 2000 psig (138 bar) with stainless steel body
Low flow model offers field adjustable set point
