Code: 569821

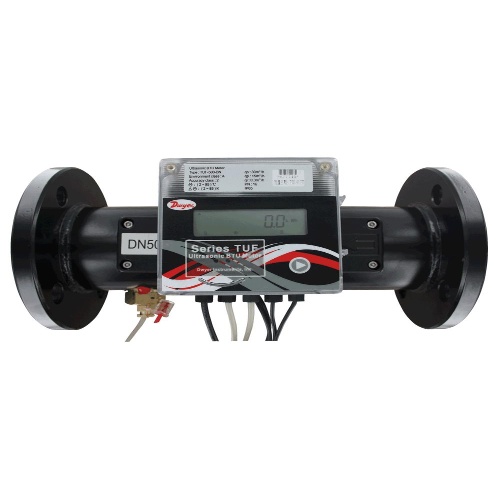

Dwyer TUF-500-BN Ultrasonic Energy Meter
Normally In Stock
Dwyer TUF-500-BN - Tenant ultrasonic BTU flowmeter, DN50 pipe size and 15 m3/h permanent flow rate with BACnet® communication.
Condition: New
Usually ships Same Day or Next Day$3061.49
Sale Price
$2551.24
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer TUF-500-BN Ultrasonic Energy Meter is an accurate and reliable solution for measuring flow and temperature in clean and compatible liquids. It has a temperature range of 41 to 203°F and an accuracy of ±0.1°C. With an IP65 rating and a pressure limit of 232 psi, it is suitable for a variety of applications. This meter can be powered by a 24 VDC/VAC source or a backup lithium metal battery. It features an 8-digit LED display and can communicate through Modbus® RTU or BACnet MSTP.
Specifications
(Instrument-Sensor) IP Protection
IP65
(Instrument-Sensor) Application
Liquid
Component
Flow Meter
(Instrument-Sensor) Type
Ultrasonic Energy Meter
(Instrument-Sensor) Temperature Range
Ambient: 41 - 131°F/5 - 55°C
(Instrument-Sensor) Temperature Range
Process: 36 - 203°F/2 - 95°C
(Instrument-Sensor) Measurement Accuracy
2.0%
Manufacturer
Dwyer Instruments
Features
Lower maintenance costs with local parameter display and no moving parts
Seamless data transfer with serial communication output standard
Eliminate the need for multiple units with a flow and temperature monitor in one
Downloads
